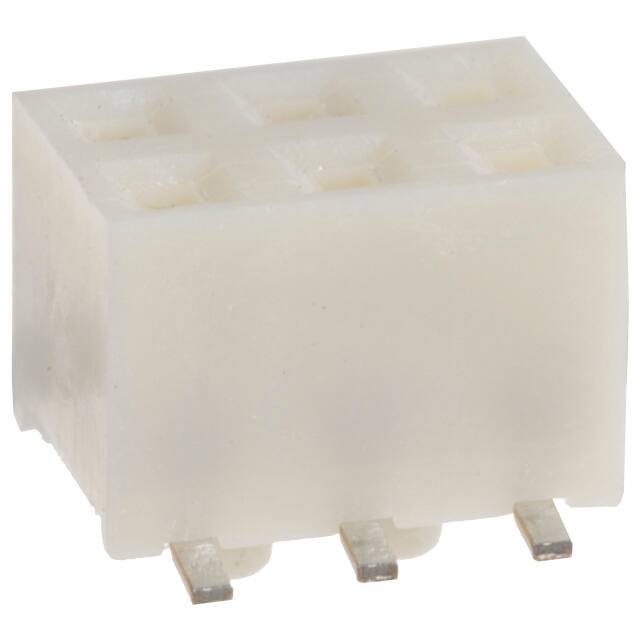

A3A-6DA-2SV(71)

Teknik Özellikler

Stack Height Mating

5.1mm 6mm

ECCN Kodu

EAR99

Nominal Gerilim

200VAC

Parça Durumu

Active

Total Number Of Contacts

6

Contact Gender

Female

Style

Board to Board or Cable

Insulation Materials

Polyphenylene Sulfide (PPS)

Applications

General Purpose, Telecommunications

Insulation Height

0.165 4.20mm

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Board Guide

Orientation

Straight

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Montaj Tipi

Surface Mount

Row Spacing Mating

0.079 (2.00mm)

Body Breadth

0.157 inch

Reference Standard

UL

Number Of Pcb Rows

2

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Sıra Sayısı

2

Fastening Type

Push-Pull

Connector Type

Receptacle

Housing Material

Polyphenylene

Pitch Mating

0.079 2.00mm

Yayın Yılı

2008

Lead Pitch

2mm

Durability

100 Cycles

Contact Materials

Phosphor Bronze

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.079 inch

Seri

A3

Contact Shape

Square

Montaj

Surface Mount

Contact Resistance

15mOhm
