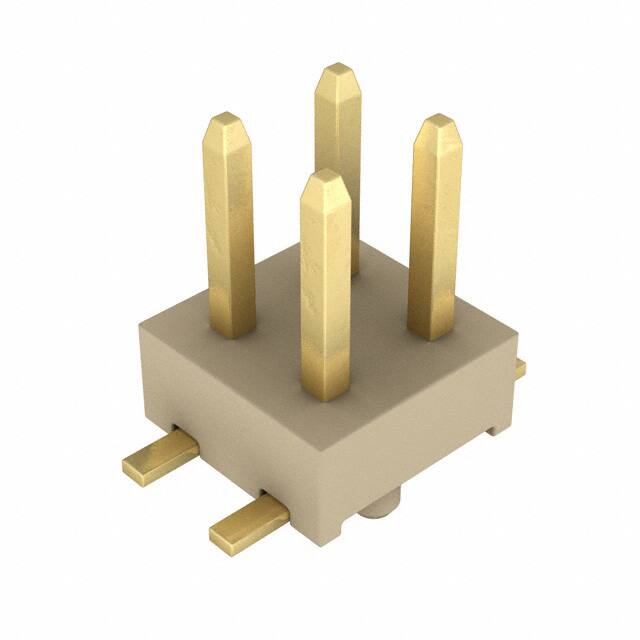

A3A-4PA-2SV(71)

Teknik Özellikler

Depth

4mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Housing Color

Brown

Pozisyon Sayısı

4

Contact Finish Thickness Post

Flash

Contact Type

Male Pin

Contact Finish Post

Gold

Pitch

2mm

Insulation Color

Brown

Ambalaj

Tube

Terminal

Solder

Shrouding

Unshrouded

Renk

Brown

Contact Plating

Gold

Contact Materials

Brass

Max Voltage Rating Ac

200V

Lead Pitch

2mm

Current Rating Amps

1A

Number Of Contacts

4

Min. Çalışma Sıcaklığı

-55°C

Seri

A3

Contact Shape

Square

Montaj

Surface Mount

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Maks. Çalışma Sıcaklığı

85°C

Contact Lengthmating

0.138 3.50mm

Max Current Rating

1A

Row Spacing Mating

0.079 (2.00mm)

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Yayın Yılı

2004

Uzunluk

4mm

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Sıra Sayısı

2

Fastening Type

Push-Pull

Connector Type

Header
