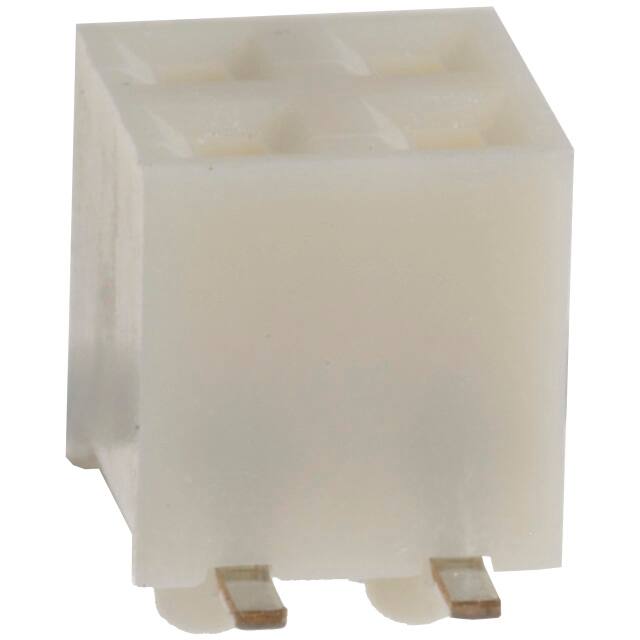

A3A-4DA-2SV(71)

Teknik Özellikler

Insulation Materials

Polyphenylene Sulfide (PPS)

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Stack Height Mating

5.1mm 6mm

Lead Pitch

2mm

REACH Uyumluluk Kodu

unknown

Nominal Gerilim

200VAC

Akım Değeri

1A

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Seri

A3

Özellikler

Board Guide

Contact Shape

Square

Montaj

Surface Mount

Orientation

Straight

Contact Finish Thickness Mating

8.00μin 0.203μm

Row Spacing Mating

0.079 (2.00mm)

Pozisyon Sayısı

4

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Color

Brown

Contact Finish Post

Tin

Contact Type

Female Socket

Terminal

Solder

Yayın Yılı

2004

Ambalaj

Tube

Housing Material

Plastic

Pitch Mating

0.079 2.00mm

Number Of Positions Loaded

All

Sıra Sayısı

2

Fastening Type

Push-Pull

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant
