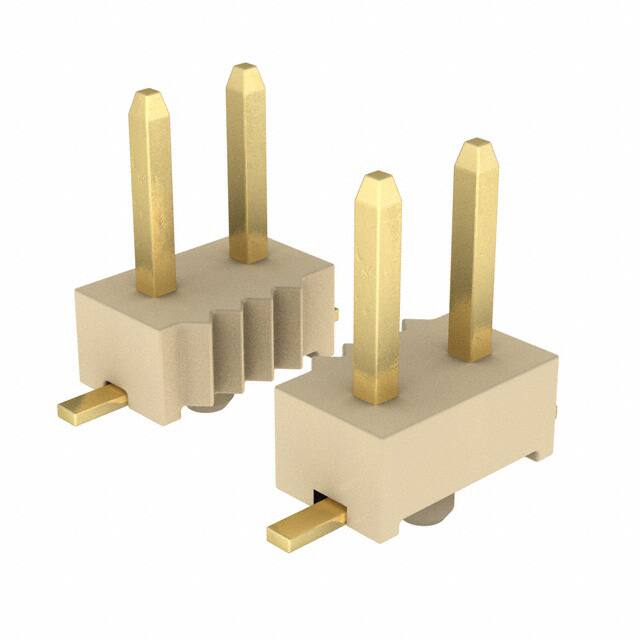

A3A-14PA-2SV(71)

Teknik Özellikler

Nominal Gerilim

200V

REACH Uyumluluk Kodu

unknown

Stack Height Mating

6mm 8.8mm

Gender

Male

Çalışma Sıcaklığı

-55°C~85°C

Insulation Height

0.071 1.80mm

Insulation Materials

Polyphenylene Sulfide (PPS)

Style

Board to Board or Cable

Parça Durumu

Active

Total Number Of Contacts

14

Orientation

Straight

Özellikler

Board Guide

Montaj Tipi

Surface Mount

Akım Değeri

2A

Fabrika Tedarik Süresi

12 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Max Current Rating

1A

Contact Lengthmating

0.138 3.50mm

Fastening Type

Push-Pull

Connector Type

Header

Sıra Sayısı

2

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Mil Conformance

NO

Mixed Contacts

NO

Uzunluk

14mm

Yayın Yılı

2004

Ul Flammability Code

94V-0

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Lead Pitch

2mm

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

200V

Filter Feature

NO

Contact Materials

Brass

Contact Finish Mating

Gold
