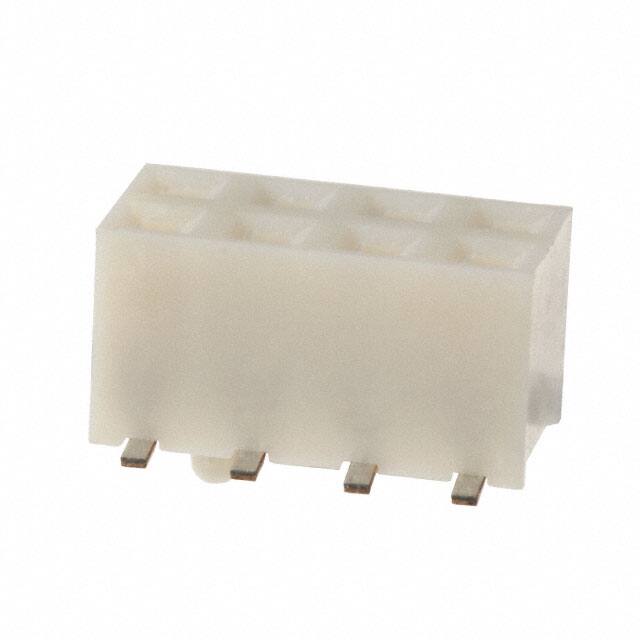

A3-8DA-2SV(71)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Finish Post

Tin

REACH Uyumluluk Kodu

unknown

Akım Değeri

1A

Parça Durumu

Active

Insulation Materials

Polyphenylene Sulfide (PPS)

Housing Color

Brown

Kurşunsuz

Lead Free

Nominal Gerilim

200VAC

Contact Type

Female Socket

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.079 (2.00mm)

ECCN Kodu

EAR99

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Height

0.165 4.20mm

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Contact Gender

Female

Depth

4mm

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~85°C

Max Voltage Rating Ac

200V

Housing Material

Polyphenylene

Contact Resistance

15mOhm

Seri

A3

Yayın Yılı

2008

Montaj Tipi

Surface Mount

Orientation

Straight

Max Current Rating

1A

Applications

General Purpose, Telecommunications

Uzunluk

8mm

Contact Finish Mating

Gold

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Terminal

Solder
