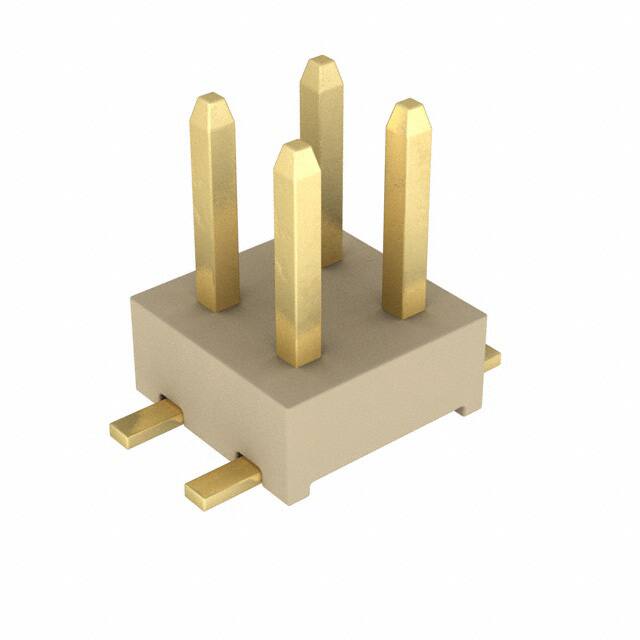

A3-4PA-2SV(71)

Teknik Özellikler

Rated Current Signal

1A

ECCN Kodu

EAR99

Iec Conformance

NO

Pitch Mating

0.079 2.00mm

RoHS Durumu

RoHS Compliant

Insulation Height

0.071 1.80mm

Contact Gender

Male

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Reference Standard

UL

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Housing Color

Brown

Row Spacing Mating

0.079 (2.00mm)

Durability

100 Cycles

Fastening Type

Push-Pull

Pozisyon Sayısı

4

Ambalaj

Tube

Montaj

Surface Mount

Mixed Contacts

NO

Contact Resistance

15mOhm

Montaj Tipi

Surface Mount

Orientation

Straight

Shrouding

Unshrouded

Max Current Rating

1A

Number Of Conductors

ONE

Body Breadth

0.157 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Shape

Square

Total Number Of Contacts

4

Kurşunsuz Kodu

yes

Depth

4mm

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

Polyphenylene Sulfide (PPS)

Akım Değeri

1A

Kurşunsuz

Lead Free

Contact Type

Male Pin

Contact Finish Thickness Post

Flash
