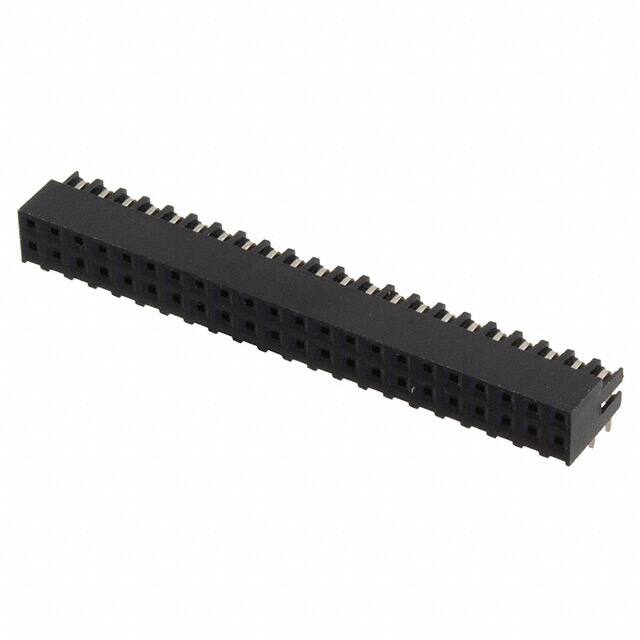

A3-44DA-2DS(71)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

HTS Kodu

8536.69.40.40

Connector Type

Receptacle

Terminal

Solder

Fastening Type

Push-Pull

Insulation

Insulated

Sıra Sayısı

2

Ambalaj

Tray

Pozisyon Sayısı

44

Max Voltage Rating Ac

200V

Housing Material

PBT

Çalışma Sıcaklığı

-55°C~85°C

Montaj Tipi

Through Hole, Right Angle

Orientation

Right Angle

Contact Resistance

15mOhm

Seri

A3

Yayın Yılı

2008

Radyasyon Dayanımı

No

Uzunluk

44mm

Max Current Rating

1A

Applications

General Purpose, Telecommunications

Contact Finish Mating

Gold

ECCN Kodu

EAR99

Insulation Height

0.183 4.65mm

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Length Post

0.098 2.50mm

Contact Gender

Male

Insulation Color

Black

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Depth

7.3mm

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Nominal Gerilim

200VAC

Akım Değeri

1A

Insulation Materials

Polyamide (PA), Nylon
