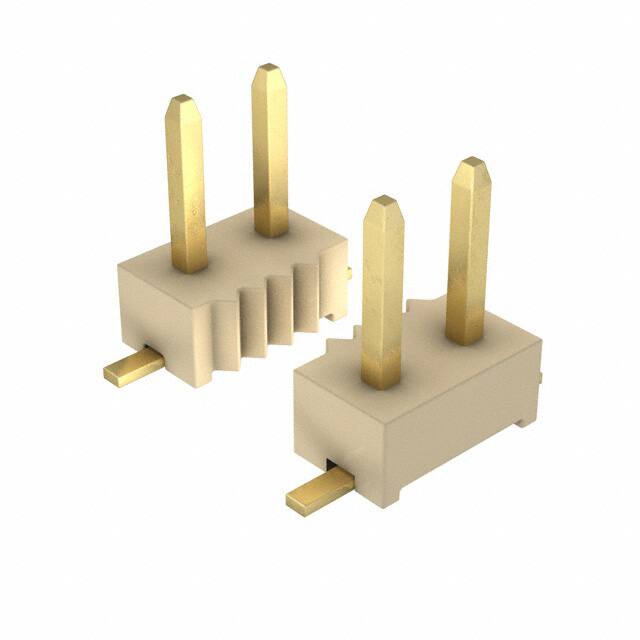

A3-14PA-2SV(71)

Teknik Özellikler

Contact Finish Post

Gold

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free

Nominal Gerilim

200V

Akım Değeri

1A

Insulation Materials

Polyphenylene Sulfide (PPS)

Contact Materials

Brass

Contact Finish Thickness Post

Flash

Contact Type

Male Pin

Contact Shape

Square

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Color

Brown

Pitch

2mm

Depth

4mm

Housing Material

Plastic

Max Voltage Rating Ac

200V

Çalışma Sıcaklığı

-55°C~85°C

Contact Lengthmating

0.138 3.50mm

Seri

A3

Yayın Yılı

2004

Uzunluk

14mm

Genişlik

4mm

Contact Finish Mating

Gold

Maks. Çalışma Sıcaklığı

85°C

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

1A

Connector Type

Header

Terminal

Solder

Number Of Contacts

14

Sıra Sayısı

2

Lead Pitch

2mm

Stack Height Mating

6mm 8.8mm

Housing Color

Brown

Parça Durumu

Active

Contact Plating

Gold

Row Spacing Mating

0.079 (2.00mm)

Gender

Male

RoHS Durumu

RoHS Compliant

Insulation Height

0.071 1.80mm
