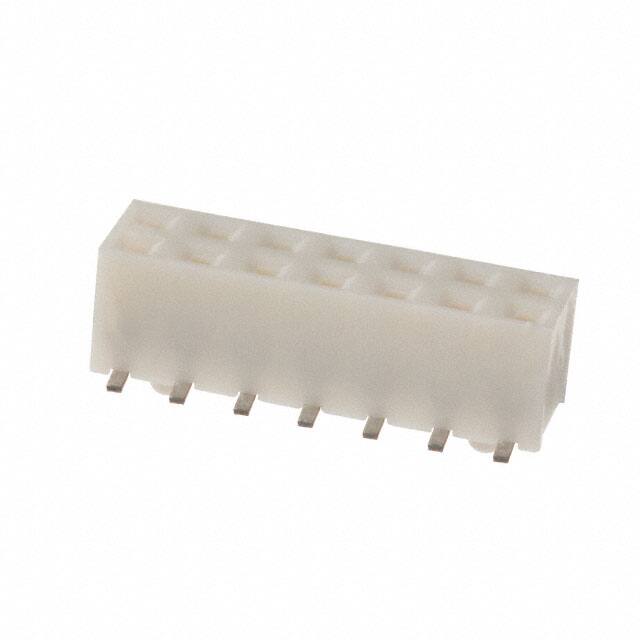

A3-14DA-2SV(71)

Teknik Özellikler

Applications

General Purpose, Telecommunications

Contact Finish Mating

Gold

Housing Material

Polyphenylene

Çalışma Sıcaklığı

-55°C~85°C

Orientation

Straight

Montaj Tipi

Surface Mount

Yayın Yılı

2004

Seri

A3

Pozisyon Sayısı

14

Montaj

Surface Mount

Ambalaj

Tube

Lead Pitch

2mm

Stack Height Mating

5.1mm 6mm

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

HTS Kodu

8536.69.40.40

Fastening Type

Push-Pull

Terminal

Solder

Sıra Sayısı

2

Nominal Gerilim

200VAC

Kurşunsuz

Lead Free

Housing Color

Brown

Parça Durumu

Active

Insulation Materials

Polyphenylene Sulfide (PPS)

Akım Değeri

1A

Row Spacing Mating

0.079 (2.00mm)

Contact Materials

Phosphor Bronze

Contact Type

Female Socket

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Post

Tin

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Contact Gender

Female

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Pitch Mating

0.079 2.00mm

Contact Shape

Square

RoHS Durumu

RoHS Compliant
