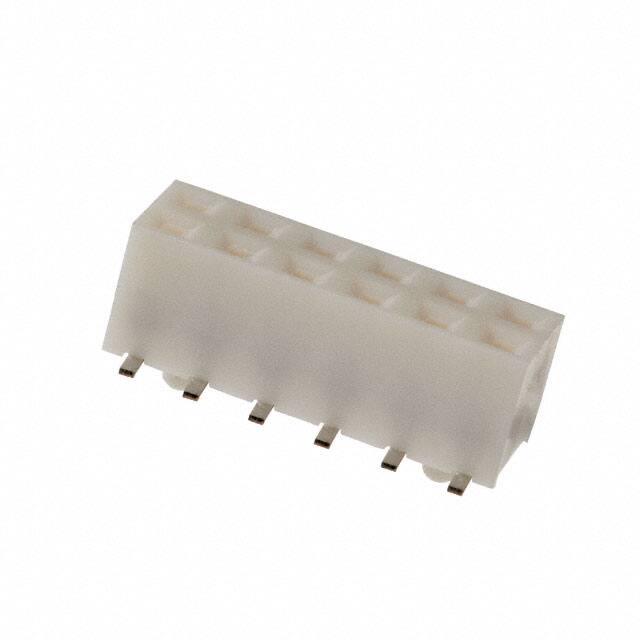

A3-12DA-2SV(71)

Teknik Özellikler

Pozisyon Sayısı

12

Ambalaj

Tube

Montaj

Surface Mount

Stack Height Mating

5.1mm 6mm

Lead Pitch

2mm

Connector Type

Receptacle

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Fastening Type

Push-Pull

Terminal

Solder

Applications

General Purpose, Telecommunications

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~85°C

Housing Material

Polyphenylene

Yayın Yılı

2004

Seri

A3

Orientation

Straight

Montaj Tipi

Surface Mount

Contact Gender

Female

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Finish Thickness Mating

8.00μin 0.203μm

Pitch Mating

0.079 2.00mm

Contact Shape

Square

RoHS Durumu

RoHS Compliant

Insulation Height

0.165 4.20mm

Parça Durumu

Active

Insulation Materials

Polyphenylene Sulfide (PPS)

Akım Değeri

1A

Nominal Gerilim

200VAC

Kurşunsuz

Lead Free

Housing Color

Brown

Contact Type

Female Socket

Contact Finish Thickness Post

39.4μin 1.00μm

Row Spacing Mating

0.079 (2.00mm)

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)
