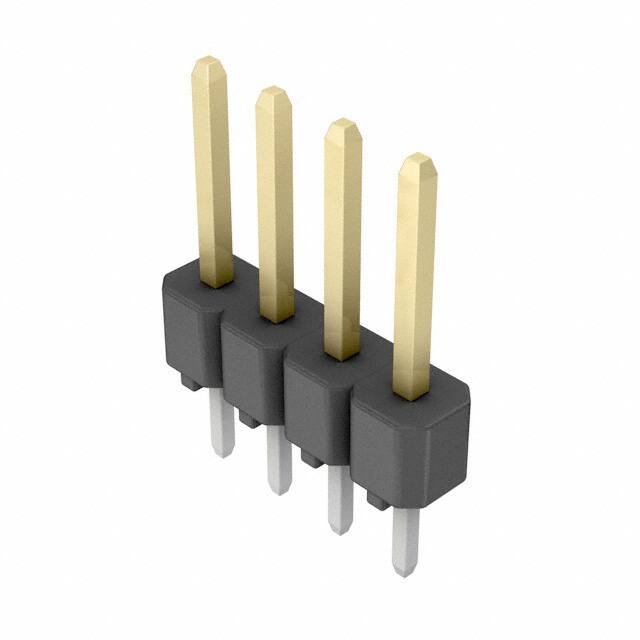

A2-4PA-2.54DSA(71)

Teknik Özellikler

Montaj Tipi

Through Hole

Terminal

Solder

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Iec Conformance

NO

Contact Materials

Brass

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

8.00μin 0.203μm

Din Conformance

NO

Housing Color

Black

Shrouding

Unshrouded

Sıra Sayısı

1

Housing Material

PBT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Number Of Pcb Rows

1

Contact Gender

Male

Contact Type

Male Pin

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Contact Finish Thickness Post

78.7μin 2.00μm

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Insulation

Insulated

Rated Current Signal

3A

Mixed Contacts

NO

Overall Contact Length

0.454 11.54mm

Mil Conformance

NO

Orientation

Straight

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Contact Resistance

15mOhm

Number Of Positions Loaded

All
