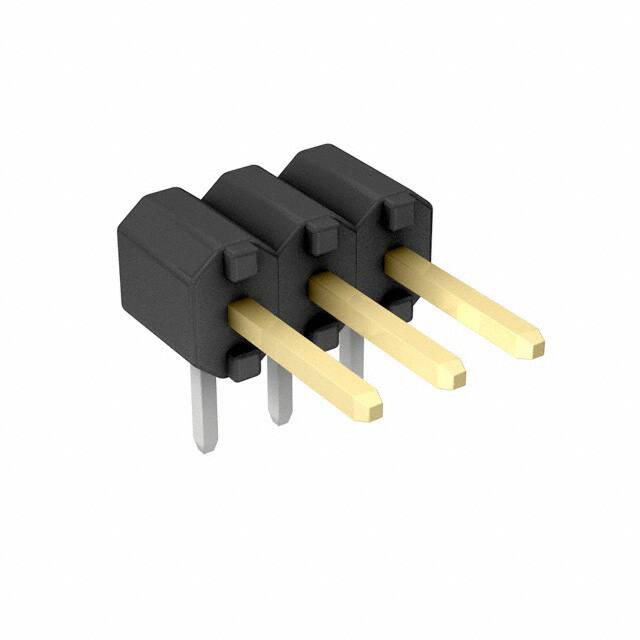

A2-3PA-2.54DS(71)

Teknik Özellikler

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Number Of Pcb Rows

1

Housing Material

PBT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Option

GENERAL PURPOSE

Contact Shape

Square

JESD-609 Kodu

e3

Contact Finish Thickness Post

78.7μin 2.00μm

Ul Flammability Code

94V-0

Contact Gender

Male

Nominal Gerilim

200V

Contact Type

Male Pin

Contact Finish Mating

Gold

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Contact Finish Thickness Mating

8.00μin 0.203μm

Din Conformance

NO

Shrouding

Unshrouded

Body Length Or Diameter

0.288 inch

Iec Conformance

NO

Terminal Adımı

2.54mm

Contact Materials

Brass

Contact Lengthmating

0.236 6.00mm

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

REACH Uyumluluk Kodu

unknown

Additional Feature

POLARIZED

Montaj

Through Hole

Insulation Height

0.157 4.00mm

Flammability Rating

UL94 V-0
