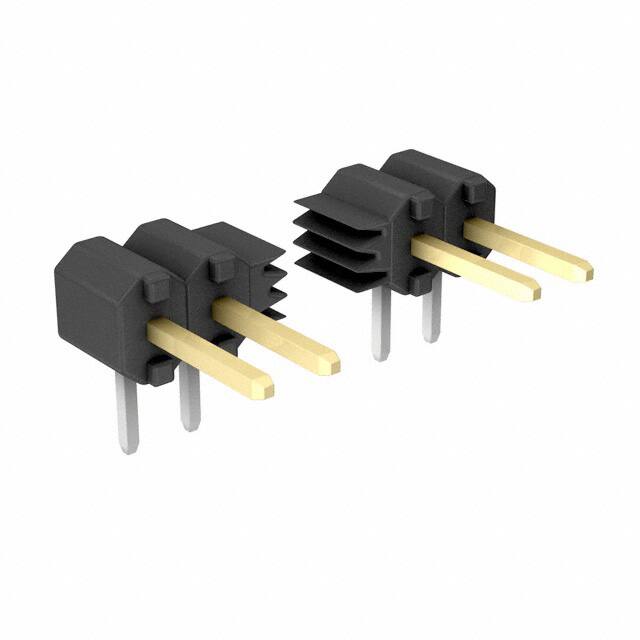

A2-18PA-2.54DS(71)

Teknik Özellikler

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.236 6.00mm

Number Of Positions Loaded

All

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Terminal Adımı

2.54mm

Iec Conformance

NO

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Mil Conformance

NO

Mixed Contacts

NO

Fastening Type

Push-Pull

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Insulation Color

Black

Ul Flammability Code

94V-0

Pozisyon Sayısı

18

Seri

A2

Montaj

Through Hole

Insulation Height

0.157 4.00mm

Contact Finish Thickness Post

78.7μin 2.00μm

JESD-609 Kodu

e3

Filter Feature

NO

Contact Finish Mating

Gold

Contact Type

Male Pin

Connector Type

Header

Current Rating Amps

3A

Nominal Gerilim

200V

Parça Durumu

Active

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT)

RoHS Durumu

RoHS Compliant

Additional Feature

POLARIZED

Contact Shape

Square
