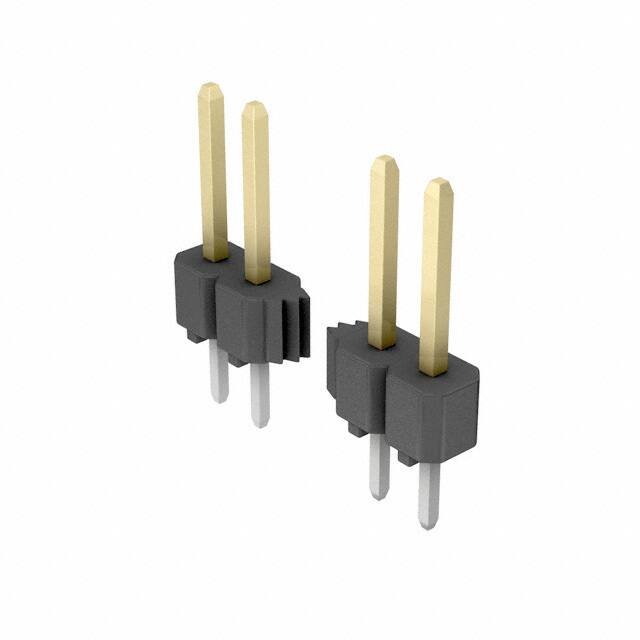

A2-17PA-2.54DSA(71)

Teknik Özellikler

Terminal

Solder

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Iec Conformance

NO

Terminal Adımı

2.54mm

Contact Materials

Brass

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

8.00μin 0.203μm

Din Conformance

NO

Shrouding

Unshrouded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Option

GENERAL PURPOSE

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Post

Tin

Number Of Pcb Rows

1

Nominal Gerilim

200V

Contact Type

Male Pin

Current Rating Amps

3A

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Contact Finish Thickness Post

78.7μin 2.00μm

Ul Flammability Code

94V-0

Fastening Type

Push-Pull

Overall Contact Length

0.454 11.54mm

Mixed Contacts

NO

Mil Conformance

NO

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Contact Length Post

0.118 3.00mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~85°C

REACH Uyumluluk Kodu

unknown

Additional Feature

POLARIZED
