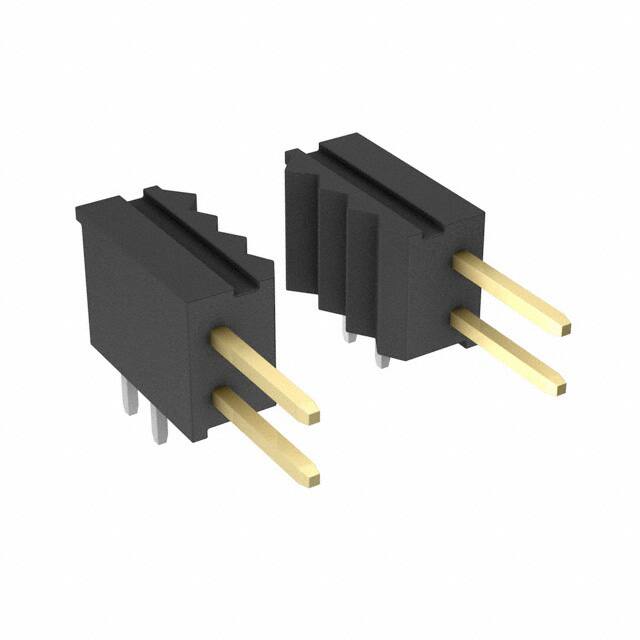

A1-60PA-2.54DS(71)

Teknik Özellikler

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Shrouding

Unshrouded

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Orientation

Right Angle

Contact Finish Thickness Post

78.7μin 2.00μm

HTS Kodu

8536.69.40.40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Housing Color

Black

Ambalaj

Bulk

Max Current Rating

3A

Contact Finish Mating

Gold

Iec Conformance

NO

Uzunluk

76.2mm

Contact Resistance

15mOhm

Insulation Materials

Polybutylene Terephthalate (PBT)

Mating Contact Pitch

0.1 inch

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Rated Current Signal

3A

Row Spacing Mating

0.100 (2.54mm)

ECCN Kodu

EAR99

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Terminal

Solder

Connector Type

Header

Contact Length Post

0.118 3.00mm

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Finish Post

Tin

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

200V

Style

Board to Board or Cable

Filter Feature

NO

Sıra Sayısı

2
