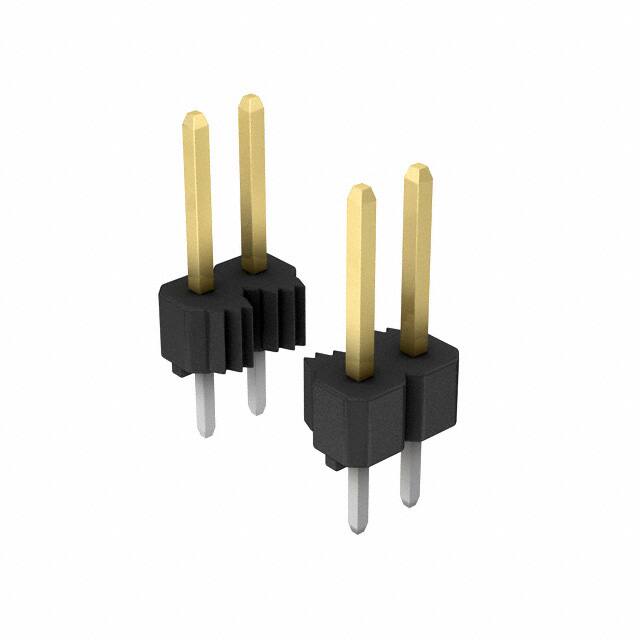

A1-26PA-2.54DSA(71)

Teknik Özellikler

Additional Feature

POLARIZED

Din Conformance

NO

Number Of Positions Loaded

All

Seri

A1

Contact Finish Thickness Mating

8.00μin 0.203μm

Montaj

Through Hole

Contact Type

Male Pin

Fastening Type

Push-Pull

REACH Uyumluluk Kodu

unknown

Plating Thickness

8μin

Contact Lengthmating

0.236 6.00mm

Depth

5.08mm

Ul Flammability Code

94V-0

Reference Standard

UL

Number Of Conductors

ONE

Pozisyon Sayısı

26

Reliability

COMMERCIAL

Durability

500 Cycles

Contact Materials

Brass

Max Voltage Rating Ac

200V

Overall Contact Length

0.454 11.54mm

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Insulation Height

0.100 2.54mm

Montaj Tipi

Through Hole

Sıra Sayısı

2

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Board or Cable

Nominal Gerilim

200V

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Solder

Pitch Mating

0.100 2.54mm

Dielectric Withstanding Voltage

650VAC V

Connector Type

Header

Option

GENERAL PURPOSE

Mixed Contacts

NO

Contact Length Post

0.118 3.00mm

Parça Durumu

Active

Contact Finish Post

Tin
