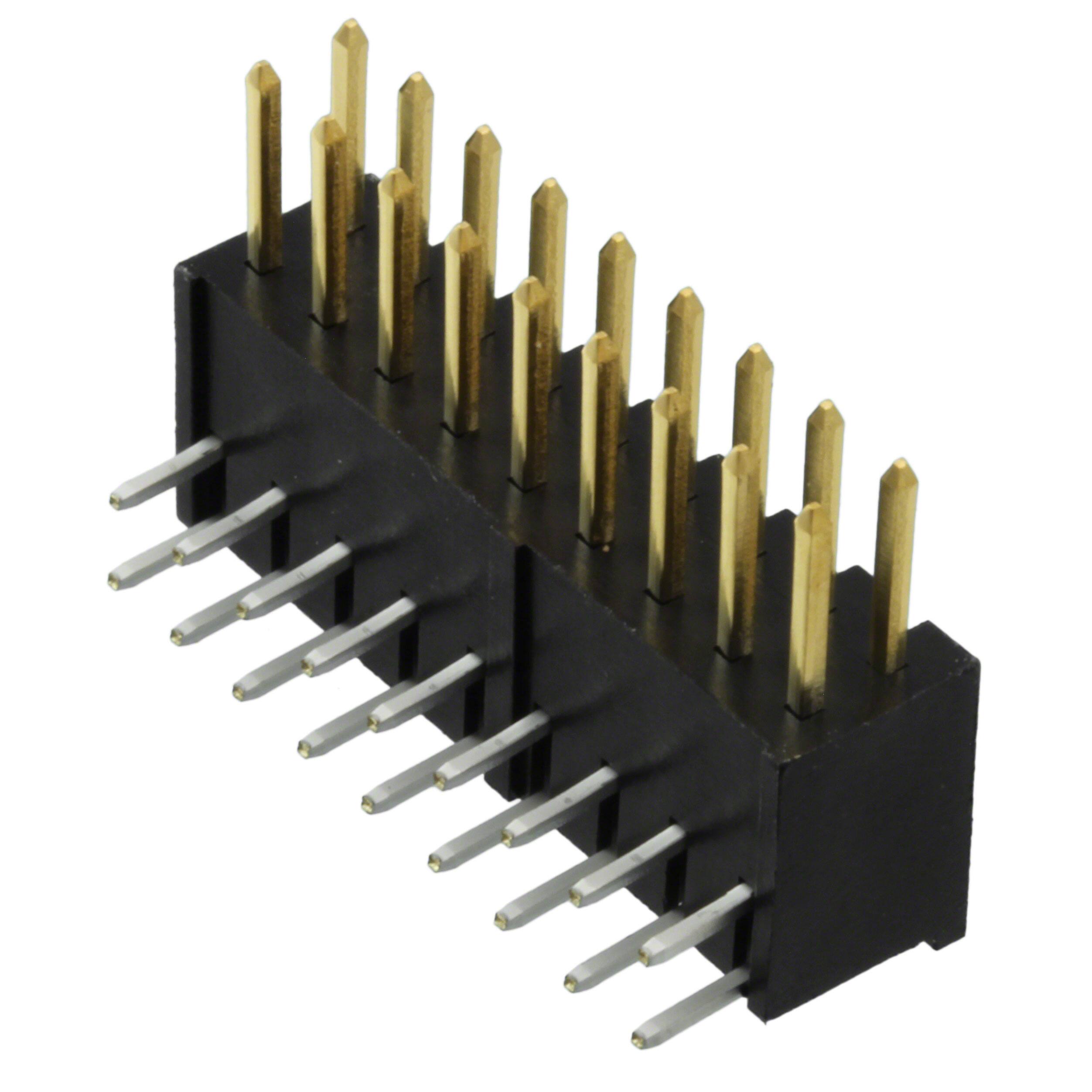

A1-18PA-2.54DS(71)

Teknik Özellikler

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Iec Conformance

NO

Contact Finish Mating

Gold

Ambalaj

Tray

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8536.69.40.40

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Shape

Square

ECCN Kodu

EAR99

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Mating Contact Pitch

0.1 inch

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Color

Black

Contact Resistance

15mOhm

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Contact Finish Post

Tin

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Length Post

0.118 3.00mm

Connector Type

Header

Terminal

Solder

Pitch Mating

0.100 2.54mm

Style

Board to Board or Cable

Nominal Gerilim

200V

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Insulation Height

0.236 6.00mm

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Filter Feature

NO

Reliability

COMMERCIAL
