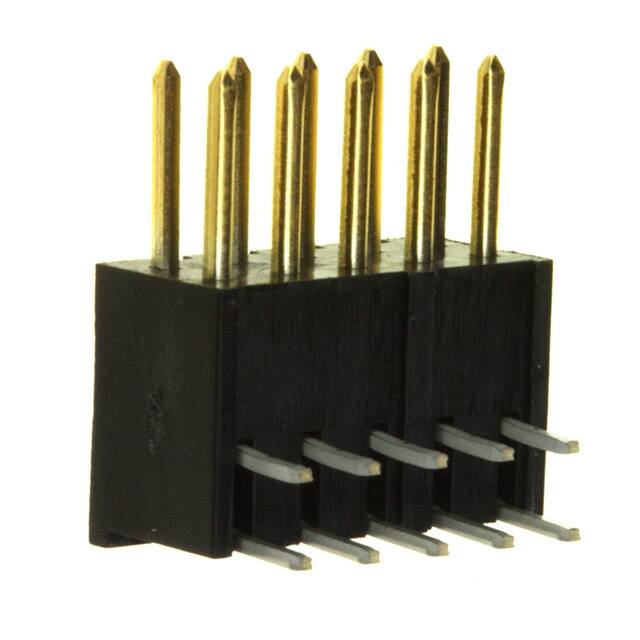

A1-10PA-2.54DS(71)

Teknik Özellikler

Orientation

Right Angle

Shrouding

Unshrouded

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Iec Conformance

NO

Uzunluk

12.7mm

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Max Current Rating

3A

Ambalaj

Tray

HTS Kodu

8536.69.40.40

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Shape

Square

Row Spacing Mating

0.100 (2.54mm)

Rated Current Signal

3A

ECCN Kodu

EAR99

Mating Contact Pitch

0.1 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Contact Resistance

15mOhm

Insulation Materials

Polybutylene Terephthalate (PBT)

Çalışma Sıcaklığı

-55°C~85°C

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Length Post

0.118 3.00mm

Contact Finish Post

Tin

Parça Durumu

Active

Terminal

Solder

Pitch Mating

0.100 2.54mm

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Board or Cable

Nominal Gerilim

200V

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Insulation Height

0.236 6.00mm

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2
