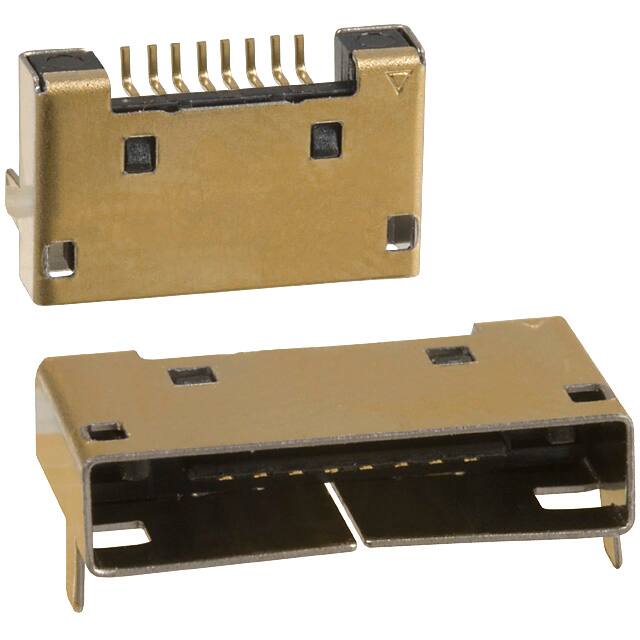

3260-8S1(55)

Teknik Özellikler

Number Of Pcb Rows

1

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Özellikler

Board Guide, Shielded

Housing Material

Plastic

Shell Material

STAINLESS STEEL

Total Number Of Contacts

8

Orientation

Right Angle

Contact Finish Thickness Post

1.25μin 0.032μm

Empty Shell

NO

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Iec Conformance

NO

Contact Finish Mating

Gold

Applications

General Purpose

Insulation Materials

Polyphenylene Sulfide (PPS)

JESD-609 Kodu

e4

Rated Current Signal

0.5A

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

70°C

Contact Shape

Square

Terminal

Solder

Pitch Mating

0.031 0.80mm

Connector Type

Receptacle

Dielectric Withstanding Voltage

424VAC V

Mixed Contacts

NO

Parça Durumu

Active

Mil Conformance

NO

Contact Gender

Female

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Cable/Wire

Nominal Gerilim

125VAC

Lead Pitch

800μm

Filter Feature

NO

Reach Svhc

No SVHC

Sıra Sayısı

1

Montaj Tipi

Surface Mount, Right Angle

Insulation Height

0.114 2.90mm

Material Flammability Rating

UL94 V-0
