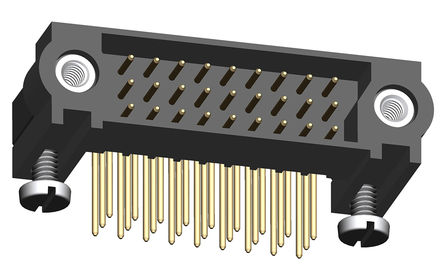

M83-LML3M5N96-0000-000

Teknik Özellikler

Style

Board to Board or Cable

Length Termination

0.157 inch

Kurşunsuz Kodu

yes

Seri

Datamate J-Tek

Connector Type

Header

Insulation Height

0.303 7.70mm

Polarization Key

POLARIZED HOUSING

Insulation Resistance

100MOhm

Parça Durumu

Active

Contact Type

Male Pin

Montaj Tipi

Through Hole, Right Angle

Insertion Forcemax

1.0008 N

Lead Length

4mm

Filter Feature

NO

Pitch Mating

0.079 2.00mm

Mating Contact Pitch

0.079 inch

Çalışma Sıcaklığı

-55°C~125°C

Terminal Adımı

2mm

Din Conformance

NO

Akım Değeri

3A

Contact Length Post

0.157 4.00mm

Additional Feature

ROHS COMPLIANT

Nominal Gerilim

120V

Mixed Contacts

NO

Contact Shape

Circular

Mil Conformance

NO

Number Of Conductors

ONE

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Housing Material

Polyphenylene

Fastening Type

Threaded

Withdrawl Forcemin

.1946 N

Pcb Contact Row Spacing

2.0066 mm

Özellikler

Mating Flange, Mounting Flange, Mounting Hardware

Number Of Pcb Rows

3

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0

Current Rating Amps

2.2A per Contact

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

9 Weeks

Pcb Contact Pattern

RECTANGULAR
