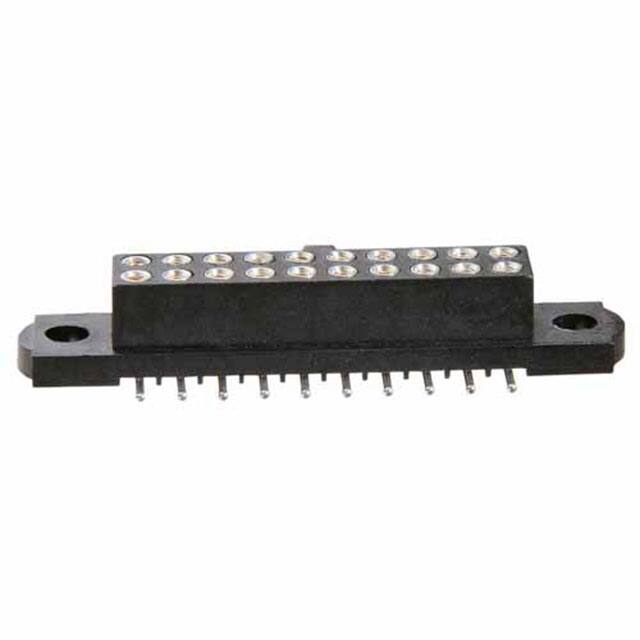

M80-4122042

Teknik Özellikler

Fabrika Tedarik Süresi

13 Weeks

Yayın Yılı

2009

Montaj

Surface Mount

Row Spacing Mating

0.079 (2.00mm)

Reliability

COMMERCIAL

Insulation Resistance

100000000Ohm

Mixed Contacts

NO

Contact Shape

Circular

Total Number Of Contacts

20

Contact Type

Female Socket

Parça Durumu

Active

Nominal Gerilim

120V

Stack Height Mating

7.7mm 7.95mm

Mil Conformance

NO

Contact Finish Mating

Gold

Number Of Conductors

ONE

Terminal

Solder

Insulation Height

0.220 5.60mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Gender

Female

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Weight

1.653004g

Durability

500 Cycles

Contact Finish Post

Tin

Connector Type

Receptacle

Contact Finish Thickness Post

137.8μin 3.50μm

Sıra Sayısı

2

Style

Board to Board or Cable

Mating Contact Pitch

0.079 inch

Material Flammability Rating

UL94 V-0

Pitch Mating

0.079 2.00mm

Pozisyon Sayısı

20

Seri

Datamate J-Tek

Din Conformance

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR
