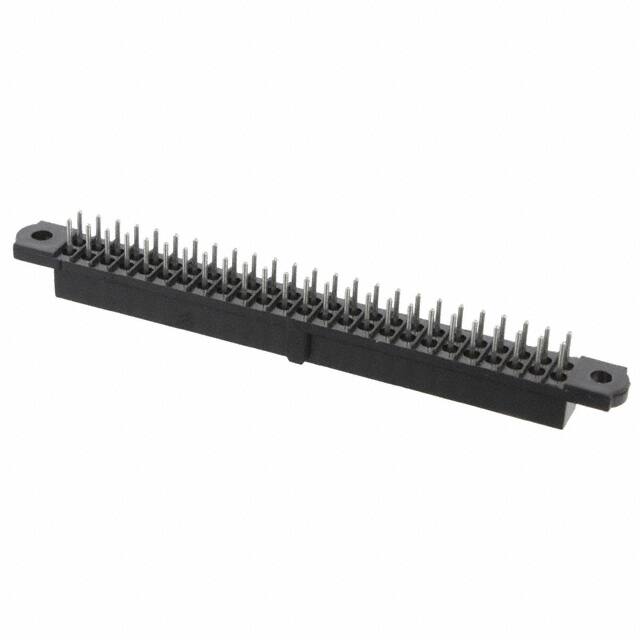

M80-4105042

Teknik Özellikler

Parça Durumu

Active

Contact Type

Female Socket

Stack Height Mating

7.3mm 7.55mm

Insulation Resistance

100MOhm

Mixed Contacts

NO

Uzunluk

60mm

Contact Shape

Circular

Yayın Yılı

2008

Montaj

Through Hole

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Row Spacing Mating

0.079 (2.00mm)

Fabrika Tedarik Süresi

13 Weeks

Material

Glass

Contact Resistance

25mOhm

Plating Thickness

11μin

Ambalaj

Tube

RoHS Durumu

ROHS3 Compliant

Connector Type

Receptacle

Contact Finish Post

Tin

Max Voltage Rating Dc

120V

Contact Gender

Female

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Terminal

Solder

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Working Voltage

120V

Insulation Height

0.205 5.20mm

Yükseklik

5.2mm

Mil Conformance

NO

Filter Feature

NO

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Housing Material

Polyphenylene

Max Voltage Rating Ac

120V

Material Flammability Rating

UL94 V-0

Housing Color

Black

Din Conformance

NO
