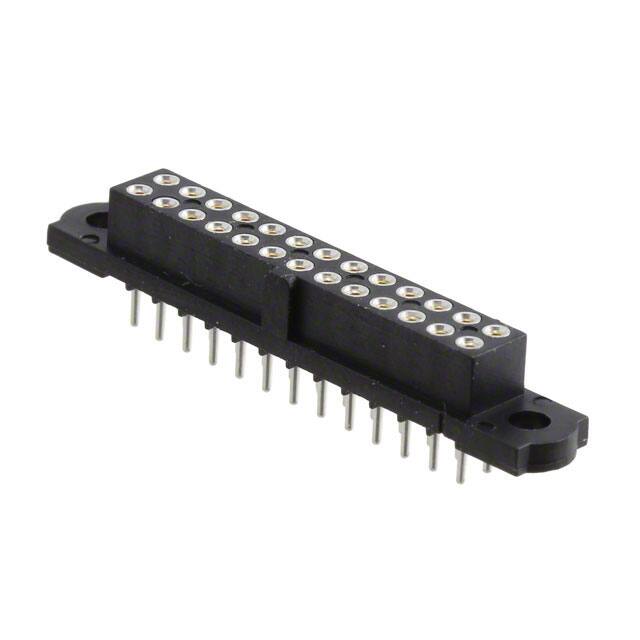

M80-4102642

Teknik Özellikler

Özellikler

Mating Flange, Polarizing Key

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

12.0μin 0.30μm

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Insulation Color

Black

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Genişlik

5.55mm

Reach Svhc

No SVHC

Contact Materials

Beryllium Copper

Orientation

Straight

Applications

Automotive, General Purpose, Military

Reference Standard

UL

Akım Değeri

3A

Additional Feature

PANEL MOUNTABLE

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Pitch Mating

0.079 2.00mm

Seri

Datamate J-Tek

Pozisyon Sayısı

26

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole

Filter Feature

NO

JESD-609 Kodu

e3

Lead Pitch

2mm

ECCN Kodu

EAR99

Contact Finish Thickness Post

137.8μin 3.50μm

Sıra Sayısı

2

Style

Board to Board or Cable

Mating Contact Pitch

0.079 inch

Çalışma Sıcaklığı

-55°C~125°C

Contact Gender

Female

RoHS Durumu

ROHS3 Compliant

Plating Thickness

11μin

Ambalaj

Tube

Weight

1.944012g

Contact Finish Post

Tin
