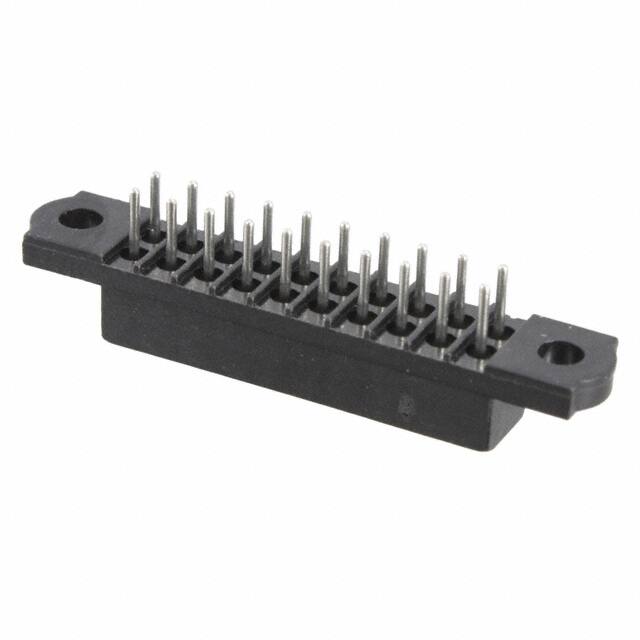

M80-4102042

Teknik Özellikler

Montaj

Through Hole

Yayın Yılı

2005

Row Spacing Mating

0.079 (2.00mm)

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Contact Resistance

25mOhm

Fabrika Tedarik Süresi

12 Weeks

Contact Type

Female Socket

Parça Durumu

Active

Stack Height Mating

7.3mm 7.55mm

Insulation Resistance

100MOhm

Mixed Contacts

NO

Contact Shape

Circular

Uzunluk

30mm

Contact Finish Mating

Gold

Contact Length Post

0.118 3.00mm

Terminal

Solder

Number Of Conductors

ONE

Yükseklik

5.2mm

Voltage Rated Dc

120V

Insulation Height

0.205 5.20mm

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Plating Thickness

11μin

Durability

500 Cycles

Contact Finish Post

Tin

Connector Type

Receptacle

Max Voltage Rating Dc

120V

Contact Gender

Female

Çalışma Sıcaklığı

-55°C~125°C

Style

Board to Board or Cable

Mating Contact Pitch

0.079 inch

Max Current Rating

3A

Depth

5.55mm

ECCN Kodu

EAR99

Lead Pitch

2mm

Sıra Sayısı

2

Contact Finish Thickness Post

137.8μin 3.50μm

Ul Flammability Code

94V-0
