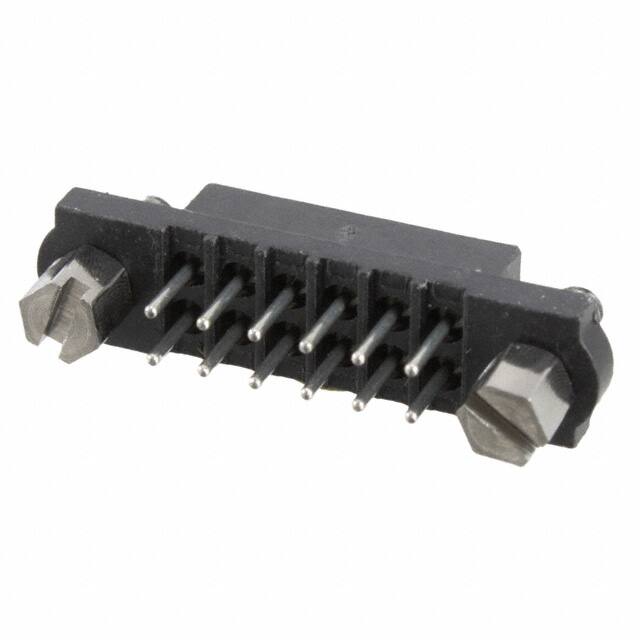

M80-4001242

Teknik Özellikler

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Ul Flammability Code

94V-0

Filter Feature

NO

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Seri

Datamate J-Tek

Pozisyon Sayısı

12

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Mating Contact Pitch

0.079 inch

Contact Finish Thickness Post

137.8μin 3.50μm

Sıra Sayısı

2

Length Termination

0.118 inch

Lead Pitch

2mm

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Contact Materials

Beryllium Copper

Applications

Automotive, General Purpose, Military

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Insulation Color

Black

Özellikler

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

Contact Finish Thickness Mating

12.0μin 0.30μm

Body Length Or Diameter

0.866 inch

Number Of Positions Loaded

All

Additional Feature

PANEL MOUNTABLE

Reference Standard

UL

Stack Height Mating

7.3mm 7.55mm

Contact Type

Female Socket

Parça Durumu

Active

Fastening Type

Screw Lock

Contact Shape

Circular

Insulation Resistance

100MOhm

Mixed Contacts

NO
