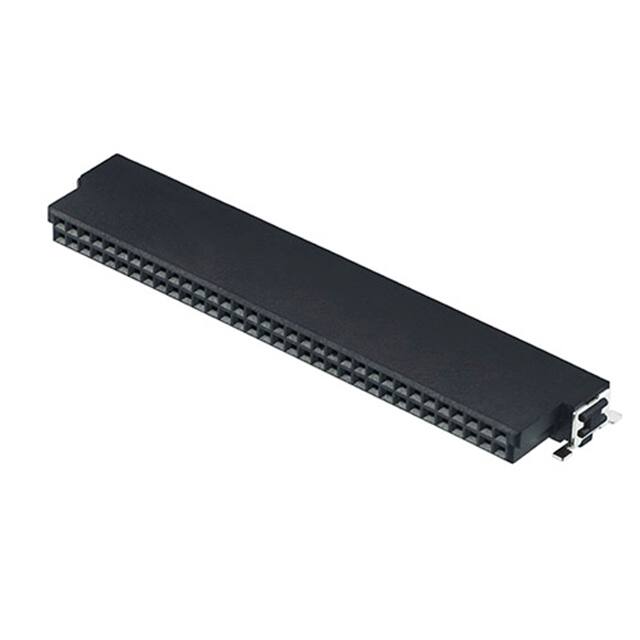

M55-6106842R

Teknik Özellikler

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Sıra Sayısı

2

Pitch Mating

0.050 1.27mm

Contact Shape

Rectangular

Fastening Type

Latch Holder

Applications

Automotive, General Purpose, Industrial

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount, Right Angle

Seri

Archer Kontrol

Yayın Yılı

2016

Insulation Color

Black

Pozisyon Sayısı

68

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Solder

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

Parça Durumu

Active

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Finish Thickness Mating

1.00μin 0.025μm

Current Rating Amps

1.2A

Insulation Height

0.146 3.70mm

Özellikler

Board Guide, Solder Retention

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Row Spacing Mating

0.050 (1.27mm)

Style

Board to Board

Contact Type

Female Socket

Contact Materials

Phosphor Bronze

Nominal Gerilim

100VAC
