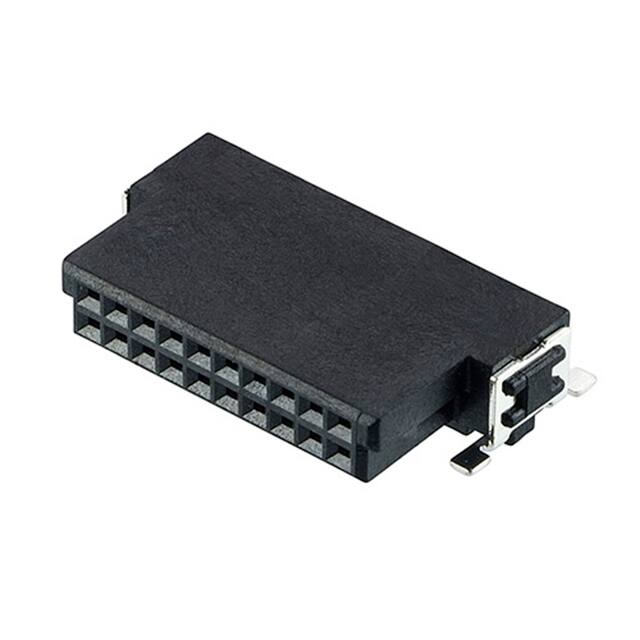

M55-6102042R

Teknik Özellikler

Contact Type

Female Socket

Row Spacing Mating

0.050 (1.27mm)

Style

Board to Board

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide, Solder Retention

Nominal Gerilim

100VAC

Contact Materials

Phosphor Bronze

Current Rating Amps

1.2A

Contact Finish Thickness Mating

1.00μin 0.025μm

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Height

0.146 3.70mm

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

20

Parça Durumu

Active

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

Terminal

Solder

Sıra Sayısı

2

Applications

Automotive, General Purpose, Industrial

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Fastening Type

Latch Holder

Contact Shape

Rectangular

Pitch Mating

0.050 1.27mm

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Insulation Color

Black

Yayın Yılı

2018

Seri

Archer Kontrol

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount, Right Angle
