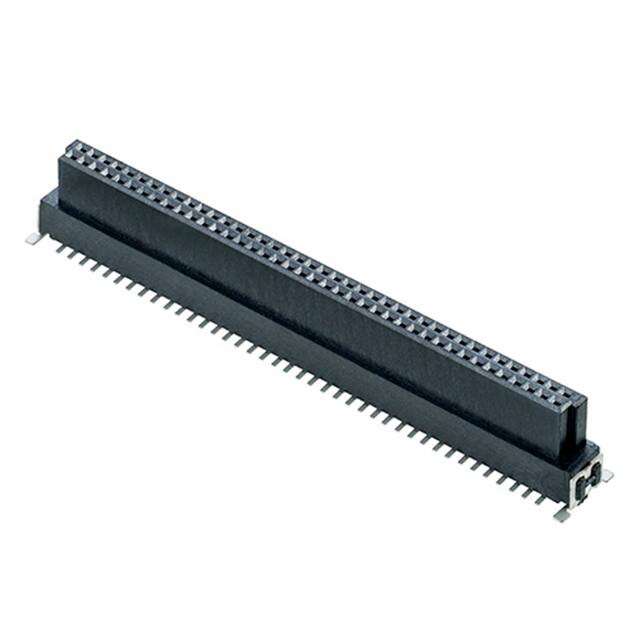

M55-6018042R

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

80

Parça Durumu

Active

Fabrika Tedarik Süresi

15 Weeks

Connector Type

Receptacle

Terminal

Solder

Stack Height Mating

10.8mm 12.3mm 13.9mm

Applications

Automotive, General Purpose, Industrial

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Fastening Type

Latch Holder

Contact Shape

Rectangular

Pitch Mating

0.050 1.27mm

Sıra Sayısı

2

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Yayın Yılı

2017

Seri

Archer Kontrol

Montaj Tipi

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Type

Female Socket

Style

Board to Board

Row Spacing Mating

0.050 (1.27mm)

Contact Finish Post

Tin

Özellikler

Board Guide, Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

100VAC

Contact Materials

Phosphor Bronze

Current Rating Amps

1.2A

Contact Finish Thickness Mating

1.00μin 0.025μm

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Height

0.356 9.05mm
