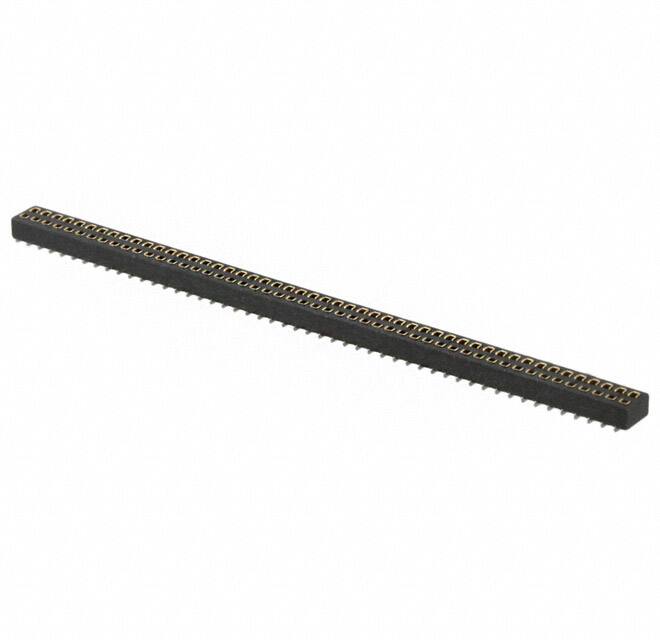

M50-3155042

Teknik Özellikler

Montaj Tipi

Surface Mount

Insulation Height

0.087 2.20mm

Style

Board to Board or Cable

Connector Type

Receptacle, Bottom or Top Entry

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Sıra Sayısı

2

Fabrika Tedarik Süresi

13 Weeks

Total Number Of Contacts

100

Contact Finish Thickness Post

100.0μin 2.54μm

Number Of Pcb Rows

2

Body Depth

0.087 inch

Özellikler

Board Guide

ECCN Kodu

EAR99

Insulation Materials

Polyamide (PA6T), Nylon 6T

HTS Kodu

8536.69.40.40

Gender

Receptacle

Reliability

COMMERCIAL

Pitch Mating

0.050 1.27mm

Stack Height Mating

3.2mm 3.9mm 4.6mm 5.3mm 7.2mm 8.6mm

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

Flash

Terminal

Solder

Pozisyon Sayısı

100

Applications

General Purpose, Medical, Telecommunications

Contact Type

Female Socket

Mating Contact Pitch

0.05 inch

Ambalaj

Tube

Body Breadth

0.134 inch

Seri

Archer M50

Iec Conformance

NO

Mil Conformance

NO

Number Of Conductors

ONE

Current Rating Amps

1A

Dielectric Withstanding Voltage

500VAC V

Pcb Contact Row Spacing

3.8608 mm

Fastening Type

Push-Pull

Row Spacing Mating

0.050 (1.27mm)

Polarization Key

POLARIZED HOUSING
