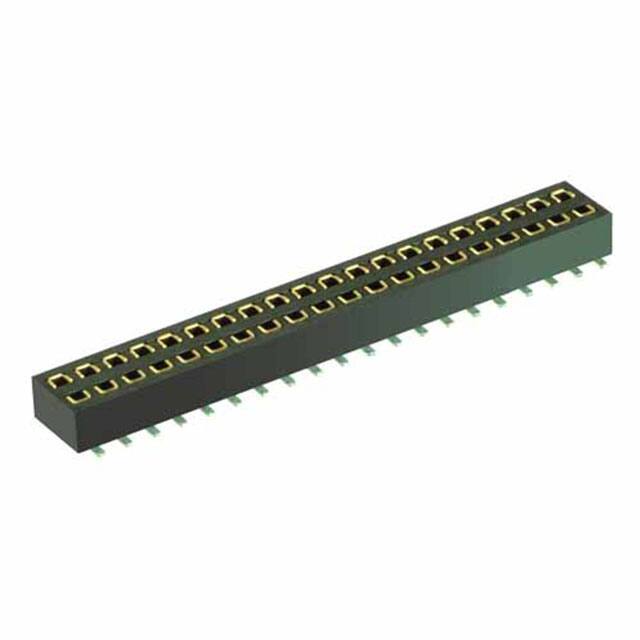

M50-3152042R

Teknik Özellikler

Mixed Contacts

NO

Reference Standard

UL

Kurşunsuz Kodu

yes

Contact Materials

Phosphor Bronze

Yayın Yılı

2016

Din Conformance

NO

JESD-609 Kodu

e3

Withdrawl Forcemin

.1946 N

Çalışma Sıcaklığı

-40°C~105°C

Depth

3.4mm

Board Mounting Option

PEG

RoHS Durumu

ROHS3 Compliant

Fastening Type

Push-Pull

Row Spacing Mating

0.050 (1.27mm)

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Uzunluk

25.8mm

Contact Finish Mating

Gold

Additional Feature

LOW PROFILE

Filter Feature

NO

Insulation Color

Black

Contact Finish Post

Tin

Contact Shape

Square

Ul Flammability Code

94V-0

Contact Finish Thickness Mating

Flash

Terminal

Solder

Reliability

COMMERCIAL

Pitch Mating

0.050 1.27mm

Stack Height Mating

3.2mm 3.9mm 4.6mm 5.3mm 7.2mm 8.6mm

Applications

General Purpose, Medical, Telecommunications

Contact Type

Female Socket

Mating Contact Pitch

0.05 inch

Pozisyon Sayısı

40

Seri

Archer M50

Iec Conformance

NO

Orientation

Straight

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

Contact Resistance

20mOhm

Housing Material

Nylon
