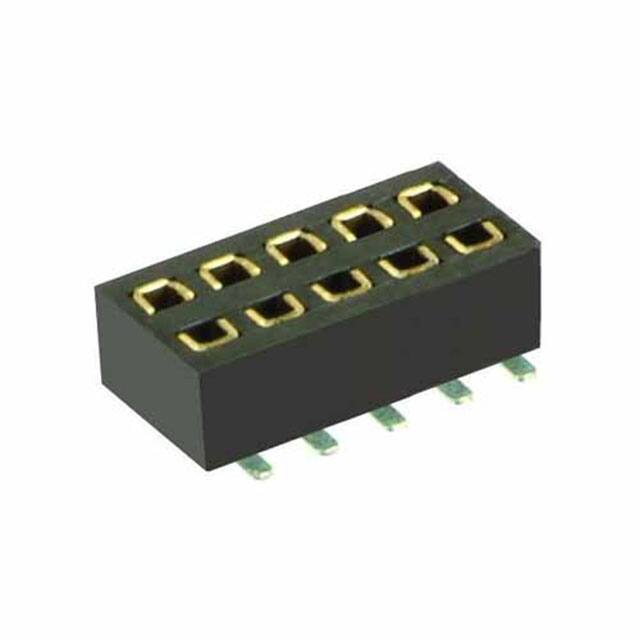

M50-3150542R

Teknik Özellikler

Pozisyon Sayısı

10

Applications

General Purpose, Medical, Telecommunications

Contact Type

Female Socket

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Stack Height Mating

3.2mm 3.9mm 4.6mm 5.3mm 7.2mm 8.6mm

Pitch Mating

0.050 1.27mm

Contact Finish Thickness Mating

Flash

Terminal

Solder

Number Of Conductors

ONE

Current Rating Amps

1A

Pcb Contact Row Spacing

3.8608 mm

Housing Material

Nylon

Contact Resistance

15mOhm

Ambalaj

Tape & Reel (TR)

Body Breadth

0.134 inch

Mil Conformance

NO

Orientation

Straight

Iec Conformance

NO

Seri

Archer M50

Parça Durumu

Active

Sıra Sayısı

2

Insulation Height

0.087 2.20mm

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Connector Type

Receptacle, Bottom or Top Entry

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Insulation Materials

Polyamide (PA6T), Nylon 6T

Özellikler

Board Guide, Pick and Place

Gender

Female

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

13 Weeks

Contact Finish Thickness Post

100.0μin 2.54μm

Body Depth

0.087 inch

Number Of Pcb Rows

2

Reference Standard

UL

Kurşunsuz Kodu

yes

Number Of Contacts

5
