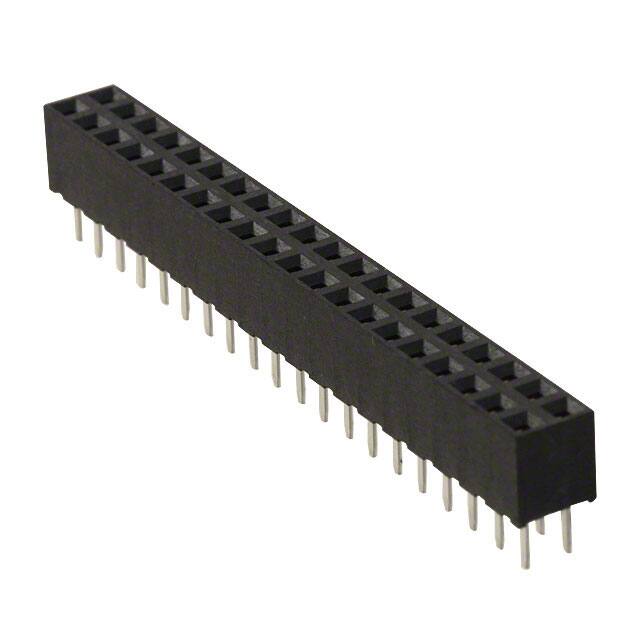

M22-7142042

Teknik Özellikler

Applications

General Purpose, Industrial, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Reliability

COMMERCIAL

Number Of Conductors

ONE

Mating Contact Pitch

0.079 inch

Montaj Tipi

Through Hole

Mil Conformance

NO

Style

Board to Board or Cable

Row Spacing Mating

0.079 (2.00mm)

Uzunluk

40mm

Contact Finish Post

Tin

Pozisyon Sayısı

40

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Contact Type

Female Socket

Yükseklik

4.4mm

Orientation

Straight

Seri

M22

Material

Nylon

Ambalaj

Tube

Contact Gender

Female

Reach Svhc

No SVHC

Fastening Type

Push-Pull

Connector Type

Receptacle

Parça Durumu

Active

Kurşunsuz Kodu

yes

Contact Resistance

20mOhm

Pitch Mating

0.079 2.00mm

Yayın Yılı

2006

Number Of Positions Loaded

All

Contact Length Post

0.094 2.40mm

Body Breadth

0.157 inch

Depth

4mm

Insulation Height

0.173 4.40mm

Çalışma Sıcaklığı

-40°C~105°C
