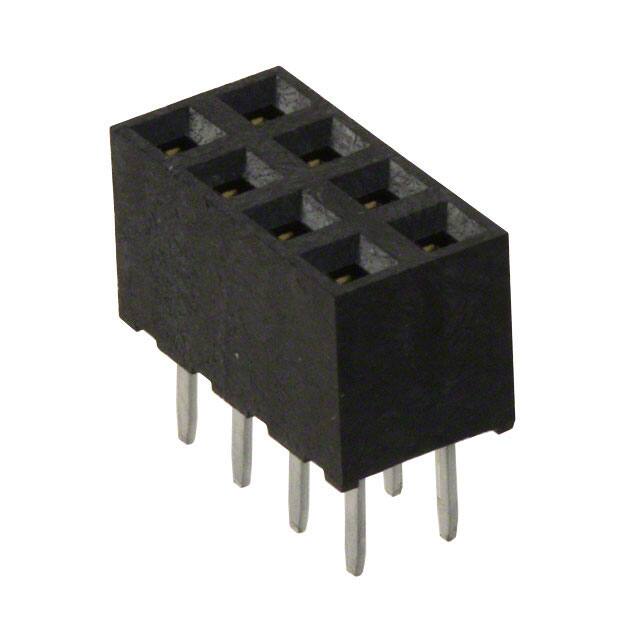

M22-7140442

Teknik Özellikler

Mixed Contacts

NO

Reliability

COMMERCIAL

Lead Pitch

2mm

Number Of Conductors

ONE

Montaj Tipi

Through Hole

Mating Contact Pitch

0.079 inch

Mil Conformance

NO

Style

Board to Board or Cable

Applications

General Purpose, Industrial, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Orientation

Straight

Seri

M22

Material

Nylon

Ambalaj

Tube

Contact Gender

Female

Reach Svhc

No SVHC

Fastening Type

Push-Pull

Row Spacing Mating

0.079 (2.00mm)

Uzunluk

8mm

Contact Finish Post

Tin

Pozisyon Sayısı

8

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Contact Type

Female Socket

Yükseklik

4.4mm

Çalışma Sıcaklığı

-40°C~105°C

Insulation Height

0.173 4.40mm

Depth

4mm

Max Current Rating

1A

Housing Color

Black

Contact Finish Mating

Gold

Terminal

Solder

Iec Conformance

NO

Genişlik

450μm

Connector Type

Receptacle
