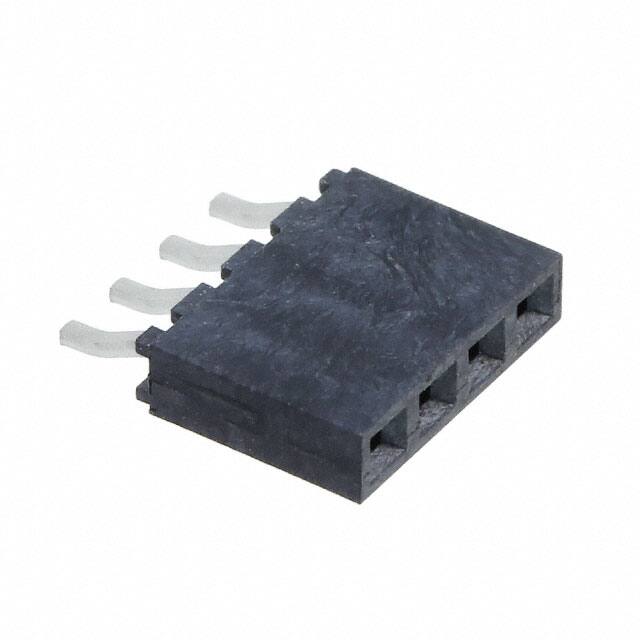

M22-6540442R

Teknik Özellikler

Insulation Height

0.079 2.00mm

Çalışma Sıcaklığı

-40°C~105°C

Reliability

COMMERCIAL

Contact Finish Mating

Gold

Durability

300 Cycles

Total Number Of Contacts

4

Terminal

Solder

Number Of Conductors

ONE

Body Length Or Diameter

0.327 inch

Montaj Tipi

Surface Mount, Right Angle

Mating Contact Pitch

0.079 inch

Insulation Color

Black

Style

Board to Board

Applications

General Purpose

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Shape

Square

Connector Type

Receptacle

Parça Durumu

Active

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

20mOhm

Yayın Yılı

2016

Pitch Mating

0.079 2.00mm

Number Of Positions Loaded

All

Body Breadth

0.079 inch

Contact Finish Thickness Mating

0.59μin 0.015μm

Seri

M22

Number Of Pcb Rows

1

Terminal Adımı

2.0066mm

Ambalaj

Tape & Reel (TR)

Contact Gender

FEMALE

Contact Finish Thickness Post

80.0μin 2.03μm

Fastening Type

Push-Pull

Reference Standard

UL

Fabrika Tedarik Süresi

13 Weeks

Body Depth

0.36 inch

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

2A

Contact Finish Post

Tin

Pozisyon Sayısı

4
