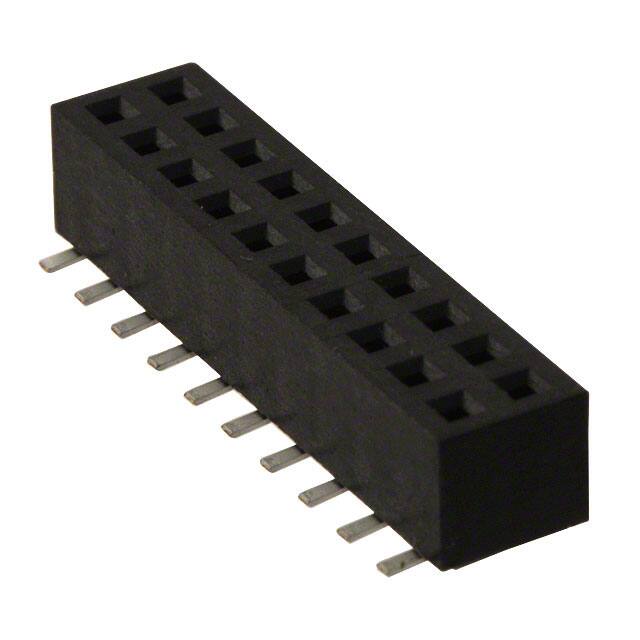

M22-6341042

Teknik Özellikler

Ul Flammability Code

94V-0

Row Spacing Mating

0.079 (2.00mm)

Additional Feature

LOW PROFILE

Housing Material

Plastic

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

20

Contact Materials

Phosphor Bronze

Current Rating Amps

2A

Contact Finish Post

Tin

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Din Conformance

NO

Contact Type

Female Socket

Contact Finish Thickness Mating

Flash

Seri

M22

Montaj

Surface Mount

Contact Gender

Female

Ambalaj

Tube

Reach Svhc

No SVHC

Gender

Receptacle

Nominal Gerilim

500VAC

Fastening Type

Push-Pull

Akım Değeri

1A

Fabrika Tedarik Süresi

13 Weeks

Connector Type

Receptacle, Bottom or Top Entry

Applications

General Purpose, Industrial, Telecommunications

Filter Feature

NO

Insulation Materials

Polyamide (PA6T), Nylon 6T

Contact Shape

Square

Kurşunsuz Kodu

yes

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-40°C~105°C

Insulation Height

0.169 4.30mm

Mixed Contacts

NO

Contact Finish Mating

Gold
