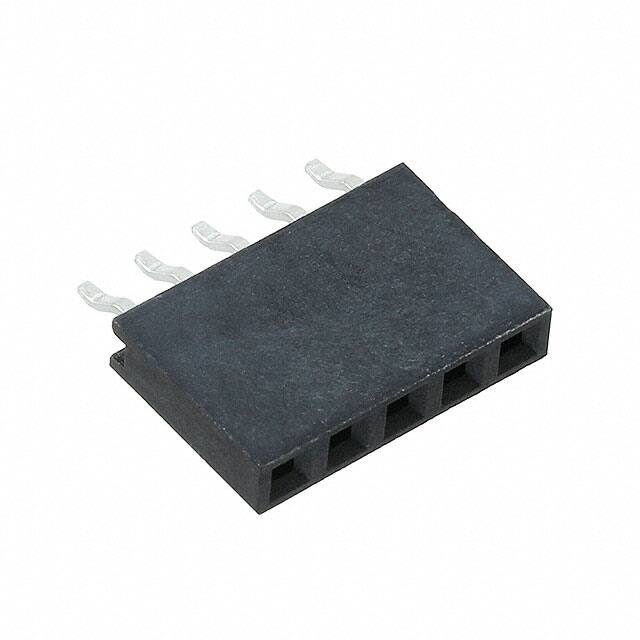

M20-7910542R

Teknik Özellikler

Parça Durumu

Active

Body Depth

0.469 inch

Body Breadth

0.098 inch

Pitch Mating

0.100 2.54mm

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Total Number Of Contacts

5

Number Of Pcb Rows

1

Durability

300 Cycles

Number Of Positions Loaded

All

Reliability

COMMERCIAL

Connector Type

Receptacle

Current Rating Amps

3A

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

0.59μin 0.015μm

Applications

General Purpose

Insulation Color

Black

Contact Type

Forked

JESD-609 Kodu

e3

Contact Finish Thickness Post

80.0μin 2.03μm

Contact Shape

Square

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

13 Weeks

Contact Gender

FEMALE

ECCN Kodu

EAR99

Seri

M20

Insulation Materials

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish Post

Tin

Insulation Height

0.098 2.50mm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Style

Board to Board

Ambalaj

Tape & Reel (TR)

Contact Resistance

20mOhm
