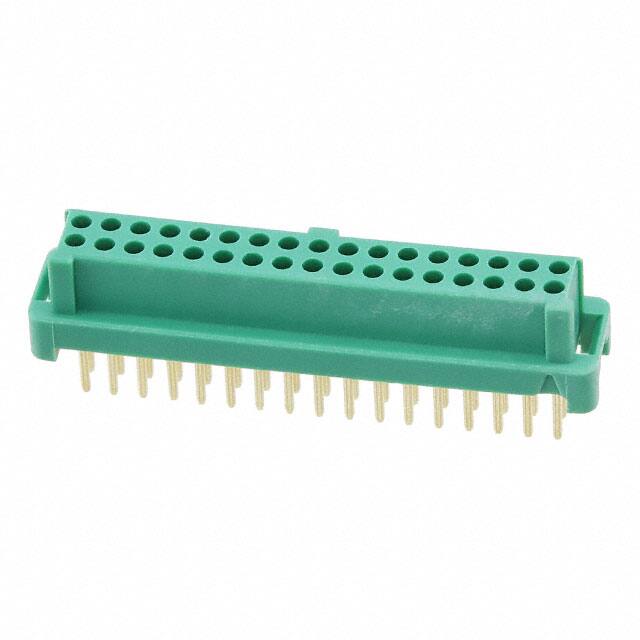

G125-FV13405L0P

Teknik Özellikler

Fastening Type

Latch Holder

Özellikler

Pick and Place, Polarizing Key

Contact Finish Mating

Gold

Contact Type

Female Socket

Row Spacing Mating

0.049 (1.25mm)

Pitch Mating

0.049 1.25mm

Filter Feature

NO

Insulation Height

0.207 5.25mm

Contact Shape

Circular

Akım Değeri

2A

Contact Finish Thickness Mating

8.00μin 0.203μm

Çalışma Sıcaklığı

-65°C~150°C

Contact Length Post

0.118 3.00mm

Length Termination

0.118 inch

Body Length Or Diameter

0.937 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Connector Type

Receptacle

Applications

Automotive, General Purpose

Fabrika Tedarik Süresi

13 Weeks

Insulation Resistance

1000000000Ohm

Mating Contact Pitch

0.049 inch

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free

Contact Materials

Copper Alloy

Number Of Pcb Rows

2

Insulation Color

Green

Terminal

Solder

Montaj Tipi

Through Hole

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Sıra Sayısı

2

Pozisyon Sayısı

34

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Style

Board to Board or Cable

Weight

934.995622mg
