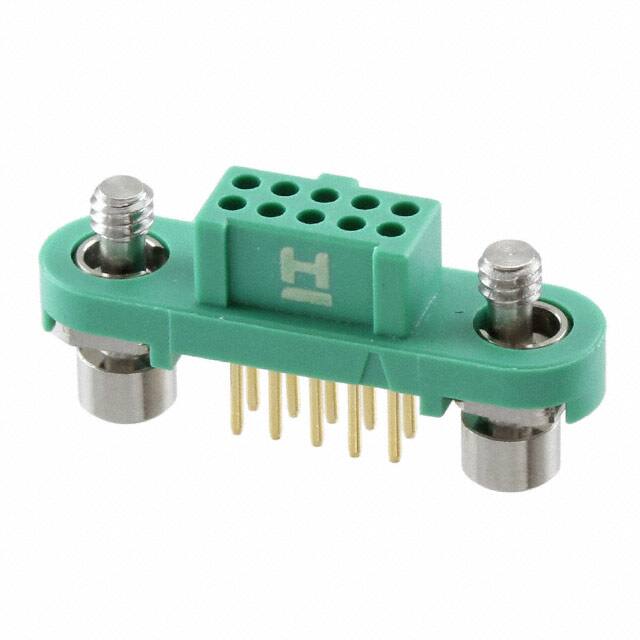

G125-FV11005F1P

Teknik Özellikler

ECCN Kodu

EAR99

Connector Type

Receptacle

Contact Finish Thickness Mating

8.00μin 0.203μm

Çalışma Sıcaklığı

-65°C~150°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.207 5.25mm

Pitch Mating

0.049 1.25mm

Row Spacing Mating

0.049 (1.25mm)

Contact Shape

Circular

Contact Finish Mating

Gold

Özellikler

Jackscrews, Pick and Place, Polarizing Key

Fastening Type

Screw Lock

Contact Type

Female Socket

Applications

Automotive, General Purpose

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Bulk

Montaj Tipi

Through Hole

Insulation Color

Green

Terminal

Solder

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free

Kurşunsuz Kodu

yes

Current Rating Amps

2A

Style

Board to Board or Cable

Seri

Gecko SL

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Pozisyon Sayısı

10
