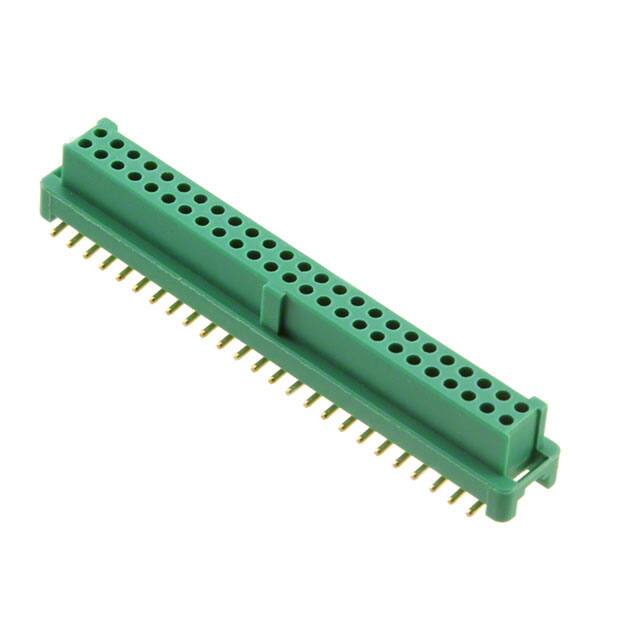

G125-FS15005L0P

Teknik Özellikler

Reference Standard

UL

Style

Board to Board or Cable

Weight

1.288004g

Kurşunsuz Kodu

yes

Parça Durumu

Active

Seri

Gecko

Sıra Sayısı

2

Pozisyon Sayısı

50

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Number Of Pcb Rows

2

Insulation Color

Green

Terminal

Solder

Montaj Tipi

Surface Mount

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Montaj

Surface Mount

Insulation Materials

Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free

Housing Material

Polyamide

Mating Contact Pitch

0.049 inch

Pcb Contact Pattern

RECTANGULAR

Applications

Automotive, General Purpose

Fabrika Tedarik Süresi

13 Weeks

Insulation Resistance

10GOhm

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-65°C~150°C

Contact Finish Thickness Mating

8.00μin 0.203μm

Body Length Or Diameter

1.331 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Yayın Yılı

2013

Connector Type

Receptacle

Total Number Of Contacts

50

Fastening Type

Latch Holder

Pcb Contact Row Spacing

3.683 mm

Özellikler

Pick and Place, Polarizing Key

Contact Finish Mating

Gold

Durability

1000 Cycles
