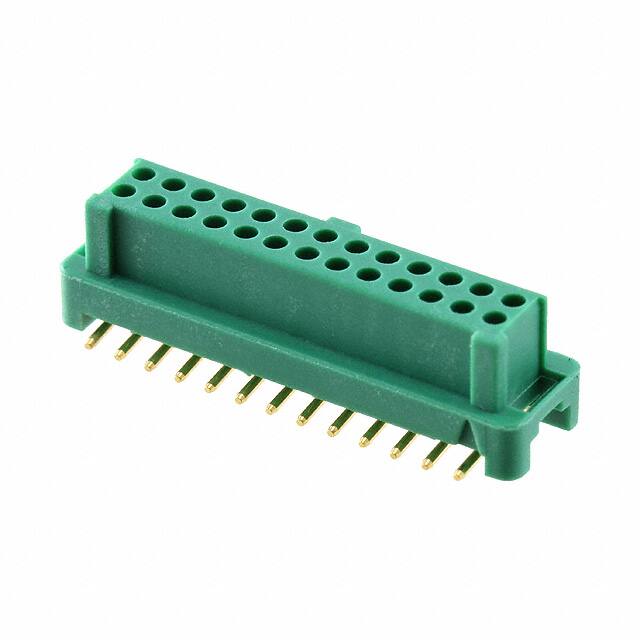

G125-FS12605L0P

Teknik Özellikler

Housing Material

Thermoplastic

Mating Contact Pitch

0.049 inch

Pcb Contact Pattern

RECTANGULAR

Insulation

Insulated

Contact Gender

Female

Applications

Automotive, General Purpose

Fabrika Tedarik Süresi

13 Weeks

Reach Svhc

No SVHC

Insulation Resistance

1GOhm

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-65°C~150°C

Contact Finish Thickness Mating

8.00μin 0.203μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Yayın Yılı

2013

Connector Type

Receptacle

Total Number Of Contacts

26

Fastening Type

Latch Holder

Pcb Contact Row Spacing

3.683 mm

Özellikler

Pick and Place, Polarizing Key

Contact Finish Mating

Gold

Durability

1000 Cycles

Contact Type

Female Socket

Row Spacing Mating

0.049 (1.25mm)

Pitch Mating

0.049 1.25mm

Nominal Gerilim

120V

Insulation Height

0.207 5.25mm

Uzunluk

6.25mm

Contact Shape

Circular

Akım Değeri

2A

Reference Standard

UL

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Parça Durumu

Active

Seri

Gecko

Sıra Sayısı

2

Pozisyon Sayısı

26

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy
