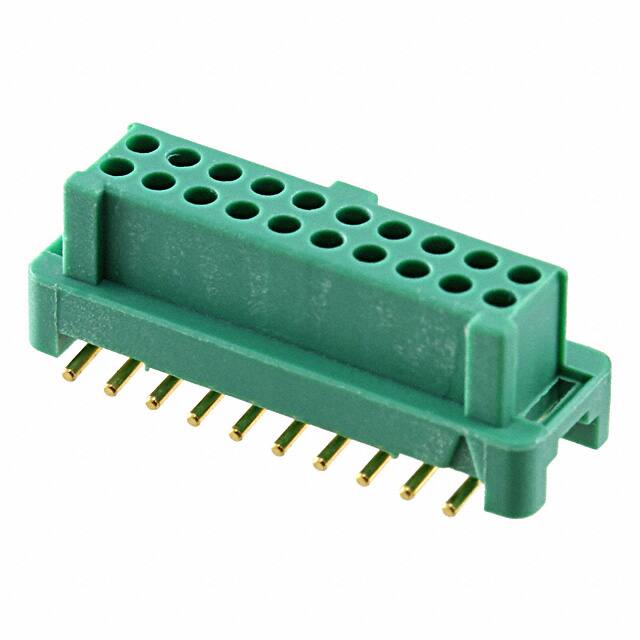

G125-FS12005L0P

Teknik Özellikler

Reliability

COMMERCIAL

Body Length Or Diameter

0.593 inch

Yayın Yılı

2013

Contact Finish Mating

Gold

Durability

1000 Cycles

Contact Type

Female Socket

Row Spacing Mating

0.049 (1.25mm)

Contact Shape

Circular

Akım Değeri

2A

Housing Material

Thermoplastic

Pcb Contact Pattern

RECTANGULAR

Applications

Automotive, General Purpose

Contact Materials

Copper Alloy

Terminal

Solder

Insulation Color

Green

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Weight

536.004434mg

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Çalışma Sıcaklığı

-65°C~150°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Connector Type

Receptacle

Total Number Of Contacts

20

Fastening Type

Latch Holder

Pcb Contact Row Spacing

3.683 mm

Özellikler

Pick and Place, Polarizing Key

JESD-609 Kodu

e4

Pitch Mating

0.049 1.25mm

Nominal Gerilim

120V

Insulation Height

0.207 5.25mm

Mating Contact Pitch

0.049 inch

Contact Gender

Female

Fabrika Tedarik Süresi

13 Weeks

Reach Svhc

No SVHC

Insulation Resistance

1GOhm

Number Of Pcb Rows

2

Ambalaj

Strip

Montaj Tipi

Surface Mount
