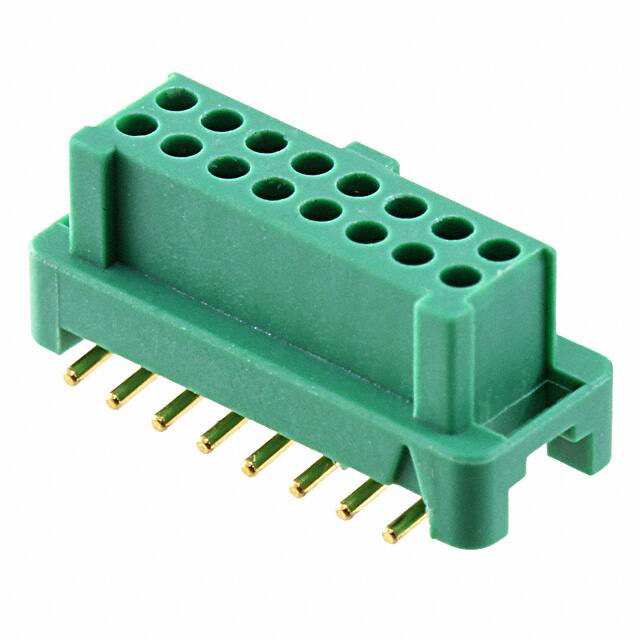

G125-FS11605L0P

Teknik Özellikler

Yayın Yılı

2013

Reliability

COMMERCIAL

Akım Değeri

2A

Contact Shape

Circular

Uzunluk

8.75mm

Row Spacing Mating

0.049 (1.25mm)

Contact Type

Female Socket

Durability

1000 Cycles

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Housing Material

Thermoplastic

Applications

Automotive, General Purpose

Insulation

Insulated

Insulation Color

Green

Terminal

Solder

Contact Materials

Copper Alloy

HTS Kodu

8536.69.40.40

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

RoHS Durumu

ROHS3 Compliant

Total Number Of Contacts

16

Connector Type

Receptacle

Number Of Conductors

ONE

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-65°C~150°C

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Height

0.207 5.25mm

Nominal Gerilim

120V

Pitch Mating

0.049 1.25mm

Fastening Type

Latch Holder

Pcb Contact Row Spacing

3.683 mm

Özellikler

Pick and Place, Polarizing Key

Mating Contact Pitch

0.049 inch

Insulation Resistance

1GOhm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

13 Weeks

Contact Gender

Female

Montaj Tipi

Surface Mount

Ambalaj

Strip
