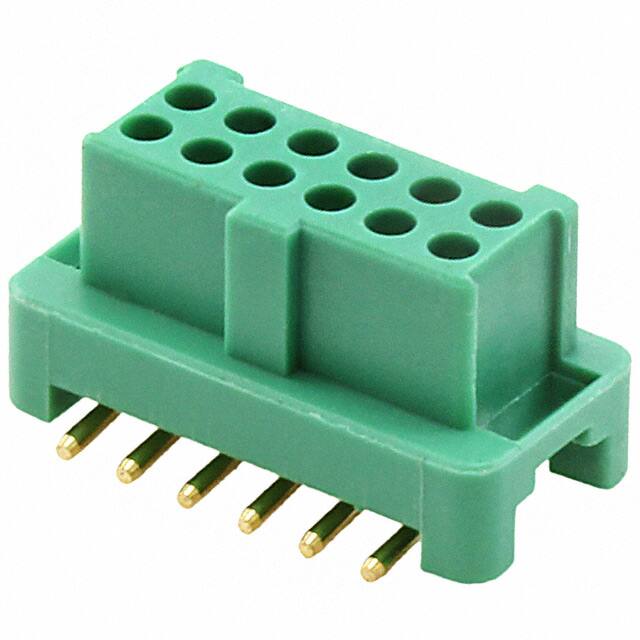

G125-FS11205L0P

Teknik Özellikler

Insulation Resistance

1GOhm

Reach Svhc

No SVHC

Applications

Automotive, General Purpose

Contact Gender

Female

Insulation

Insulated

Fabrika Tedarik Süresi

13 Weeks

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.049 inch

Housing Material

Thermoplastic

Uzunluk

6.25mm

Insulation Height

0.207 5.25mm

Nominal Gerilim

120V

Pitch Mating

0.049 1.25mm

Row Spacing Mating

0.049 (1.25mm)

Akım Değeri

2A

Contact Shape

Circular

Contact Finish Mating

Gold

Özellikler

Pick and Place, Polarizing Key

Pcb Contact Row Spacing

3.683 mm

Fastening Type

Latch Holder

Contact Type

Female Socket

Durability

1000 Cycles

Number Of Conductors

ONE

Total Number Of Contacts

12

Connector Type

Receptacle

Yayın Yılı

2013

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-65°C~150°C

Contact Finish Thickness Mating

8.00μin 0.203μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Pozisyon Sayısı

12

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Seri

Gecko

Parça Durumu

Active

Reference Standard

UL

Number Of Positions Loaded

All
