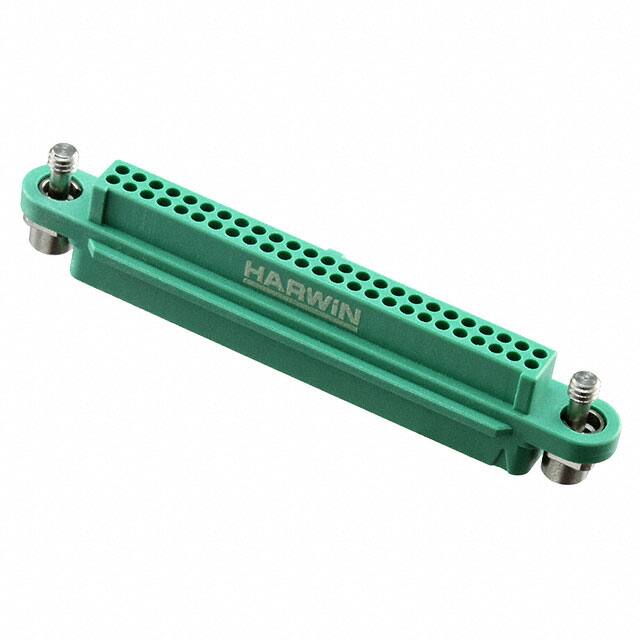

G125-2245096F1

Teknik Özellikler

HTS Kodu

8536.69.40.40

Ul Flammability Code

94-0

Insulation Materials

GLASS FILLED THERMOPLASTIC

Note

Contacts Not Included

Mounting Option2

SCREWLOCKS

Ambalaj

Bulk

Montaj Tipi

Panel Mount

Pitch

0.049 1.25mm

Sıra Sayısı

2

Mounting Option1

LOCKING

Pozisyon Sayısı

50

RoHS Durumu

ROHS3 Compliant

Row Spacing

0.049 (1.25mm)

Option

GENERAL PURPOSE

Reference Standard

UL

Mixed Contacts

NO

Parça Durumu

Active

Seri

Gecko SL

Özellikler

Jackscrews, Mounting Flange, Polarizing Key

Fastening Type

Screw Lock

Durability

1000 Cycles

Operating Temperature Min

-65°C

Contact Type

Female Socket

Filter Feature

NO

Contact Termination

Crimp

Body Length Or Diameter

1.681 inch

Renk

Green

Rated Current Signal

2A

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

ECCN Kodu

EAR99

Yayın Yılı

2016

Total Number Of Contacts

50

Connector Type

Receptacle

Fabrika Tedarik Süresi

13 Weeks

Insulation Resistance

10000000Ohm

Polarization Key

POLARIZED HOUSING
