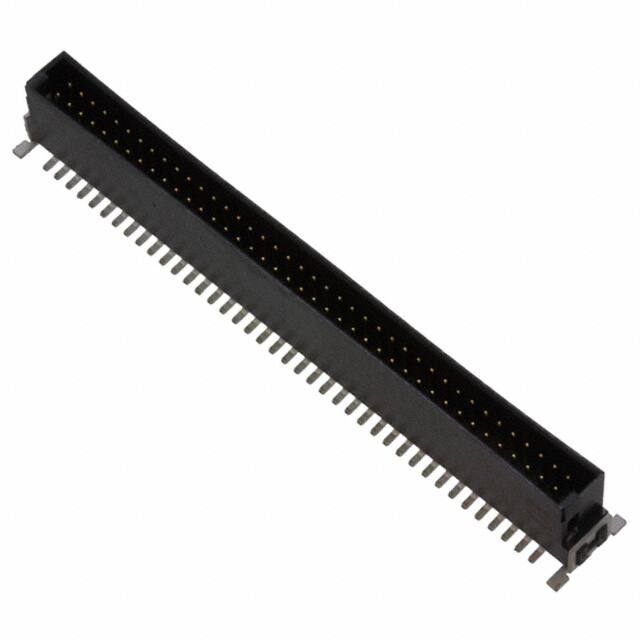

15120802601000

Teknik Özellikler

Gender

Male

Pozisyon Sayısı

80

Montaj

Surface Mount

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Kurşunsuz

Lead Free

Insulation Height

0.319 8.10mm

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Orientation

Straight

Iec Conformance

NO

Parça Durumu

Active

Özellikler

Board Guide, Pick and Place, Solder Retention

Ambalaj

Cut Tape (CT)

Option

GENERAL PURPOSE

Seri

har-flex®

Contact Finish Mating

Gold

Mixed Contacts

NO

Total Number Of Contacts

80

Terminal

Solder

Housing Material

Liquid Crystal Polymer

Number Of Positions Loaded

All

Stack Height

3.25mm

Akım Değeri

1.5A

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Contact Finish Post

Tin

Reach Svhc

No SVHC

Fastening Type

Push-Pull

Fabrika Tedarik Süresi

4 Weeks

Din Conformance

NO

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Contact Lengthmating

0.157 4.00mm

Contact Type

Male Pin

Connector Type

Header

Insulation Materials

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)
