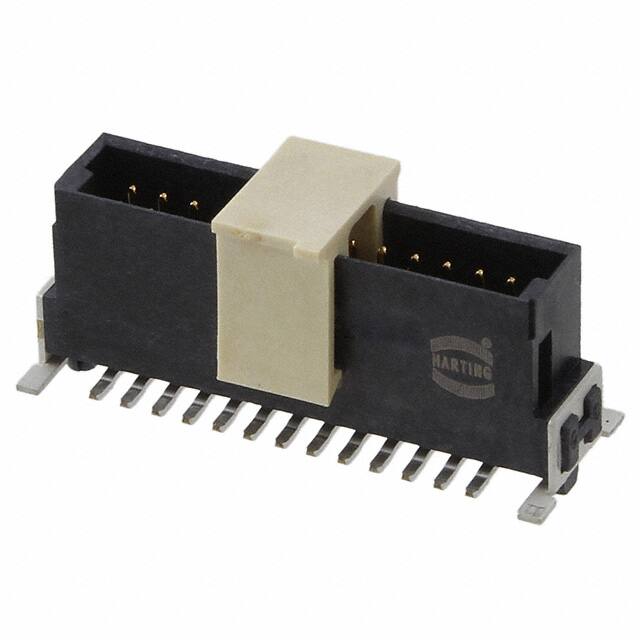

15120262601000

Teknik Özellikler

Contact Type

Male Pin

Contact Lengthmating

0.157 4.00mm

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Din Conformance

NO

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

4 Weeks

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.050 (1.27mm)

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Connector Type

Header

Seri

har-flex®

Contact Finish Mating

Gold

Ambalaj

Cut Tape (CT)

HTS Kodu

8536.69.40.40

Option

GENERAL PURPOSE

Özellikler

Board Guide, Pick and Place, Solder Retention

Parça Durumu

Active

Iec Conformance

NO

Orientation

Straight

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Style

Board to Board or Cable

Montaj

Surface Mount

Pozisyon Sayısı

26

Insulation Height

0.319 8.10mm

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Gender

Male

Stack Height

3.25mm

Contact Finish Post

Tin

Contact Materials

Copper Alloy

RoHS Durumu

ROHS3 Compliant
