Adet bazlı fiyat
- 1+ adet$11.84
- 10+ adet$11.17
- 100+ adet$10.54
- 500+ adet$9.94
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

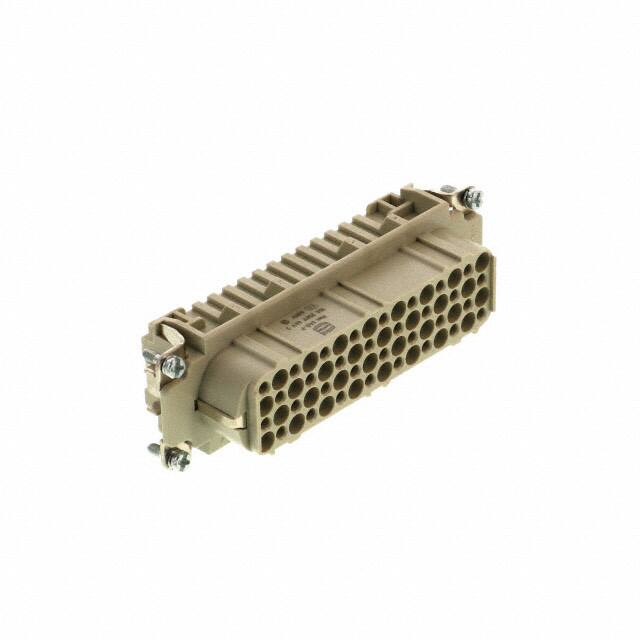

Teknik Özellikler
- Seri
- Han® D
- Durability
- 500 Cycles
- Kurşunsuz Kodu
- yes
- Voltage Rated Ac
- 250V
- Fabrika Tedarik Süresi
- 3 Weeks
- Insulation Resistance
- 10GOhm
- ECCN Kodu
- EAR99
- Body Breadth
- 1.339 inch
- Flammability Rating
- UL94 V-0
- Mounting Option1
- M3
- Iec Conformance
- NO
- Reach Svhc
- No SVHC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Renk
- Gray
- Contact Type
- Han® D
- Contact Finish Mating
- NOT SPECIFIED
- Wire Gauge Min
- 26 AWG
- Orientation
- Straight
- Parça Durumu
- Active
- Uzunluk
- 111mm
- Connector Type
- Insert without Contacts
- Contact Resistance
- 3MOhm
- Number Of Conductors
- ONE
- Test Voltage
- 2kV
- Material
- Thermoplastic
- Size
- 24B
- Test Current
- 10A
- Housing Material
- Polycarbonate (PC)
- Reliability
- COMMERCIAL
- Akım Değeri
- 10A
- Number Of Poles
- 64
- Çalışma Sıcaklığı
- -40°C~125°C
- Working Voltage
- 250V
- Din Conformance
- YES
- Wire Gauge Max
- 14 AWG
- Montaj Tipi
- CABLE
- Depth
- 40mm
- Reference Standard
- UL, CSA
- Contact Materials
- Copper
- HTS Kodu
- 8536.69.80.00
