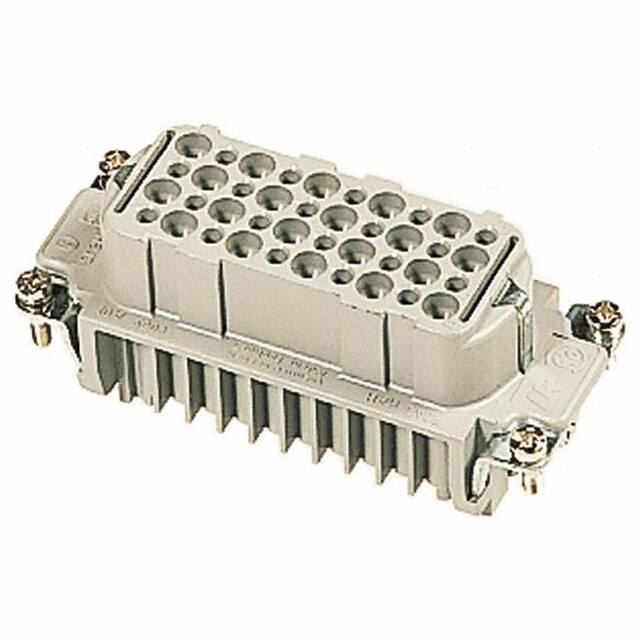

09210403101

Teknik Özellikler

Mounting Option2

LOCKING

Contact Resistance

3MOhm

Connector Type

Insert without Contacts

Uzunluk

84.5mm

Test Voltage

2kV

Number Of Conductors

ONE

Contact Type

Han® D

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Renk

Gray

Iec Conformance

NO

Parça Durumu

Active

Contact Finish Mating

NOT SPECIFIED

Wire Gauge Min

26 AWG

Orientation

Straight

Body Breadth

1.339 inch

Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Insulation Resistance

10GOhm

Mounting Option1

DETENT

Durability

500 Cycles

Kurşunsuz Kodu

yes

Seri

Han® B

Kurşunsuz

Lead Free

Voltage Rated Ac

250V

Fabrika Tedarik Süresi

4 Weeks

Total Number Of Contacts

40

Bodyshell Style

PLUG

Option

GENERAL PURPOSE

Max Current Rating

10A

Additional Feature

ROHS COMPL. & M3X10 SCREWS

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Terminal Stili

Crimp

Gender

Female

Contact Plating

Silver

Sıra Sayısı

4

HTS Kodu

8536.69.80.00

Pozisyon Sayısı

40+Ground

Contact Materials

Copper
