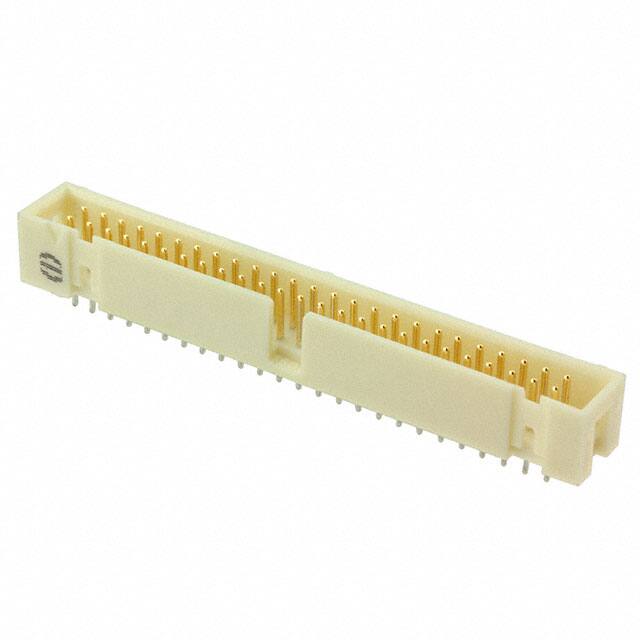

09195506324

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Contact Shape

Square

Contact Type

Male Pin

Rated Current Signal

2A

Contact Lengthmating

0.240 6.10mm

Sıra Sayısı

2

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Insulation Height

0.350 8.89mm

Parça Durumu

Active

Ambalaj

Bulk

Insulation Resistance

1000000000Ohm

Contact Finish Post

Tin

Style

Board to Cable/Wire

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Filter Feature

NO

Mil Conformance

NO

Body Breadth

0.366 inch

ECCN Kodu

EAR99

Özellikler

Keying Slot

Contact Finish Mating

NOT SPECIFIED

Pitch Mating

0.100 2.54mm

Din Conformance

YES

Montaj Tipi

Through Hole

Kurşunsuz Kodu

yes

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Length Termination

0.114 inch

Contact Length Post

0.114 2.90mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

7 Weeks

Material Flammability Rating

UL94 V-0
