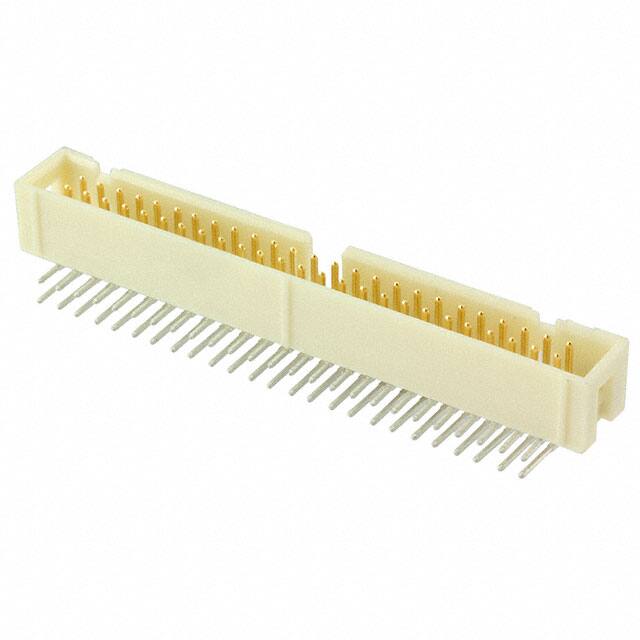

09195506323

Teknik Özellikler

Iec Conformance

NO

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

ROHS3 Compliant

Insulation Color

Beige

Seri

SEK

Pozisyon Sayısı

50

Fastening Type

Latch Holder

Dielectric Withstanding Voltage

1000VAC V

Option

GENERAL PURPOSE

Orientation

Right Angle

Number Of Pcb Rows

2

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Contact Length Post

0.114 2.90mm

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole, Right Angle

Din Conformance

YES

Pitch Mating

0.100 2.54mm

Özellikler

Keying Slot

Contact Finish Mating

NOT SPECIFIED

Reference Standard

UL

Length Termination

0.114 inch

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Number Of Conductors

ONE

Style

Board to Cable/Wire

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Terminal

Solder

Ul Flammability Code

94V-0

Ambalaj

Bulk

Parça Durumu

Active

Renk

Beige, Grey

Insulation Height

0.366 9.30mm
